What is a Thermal Envelope and Why is it Important?

Last modified: 15.07.2024

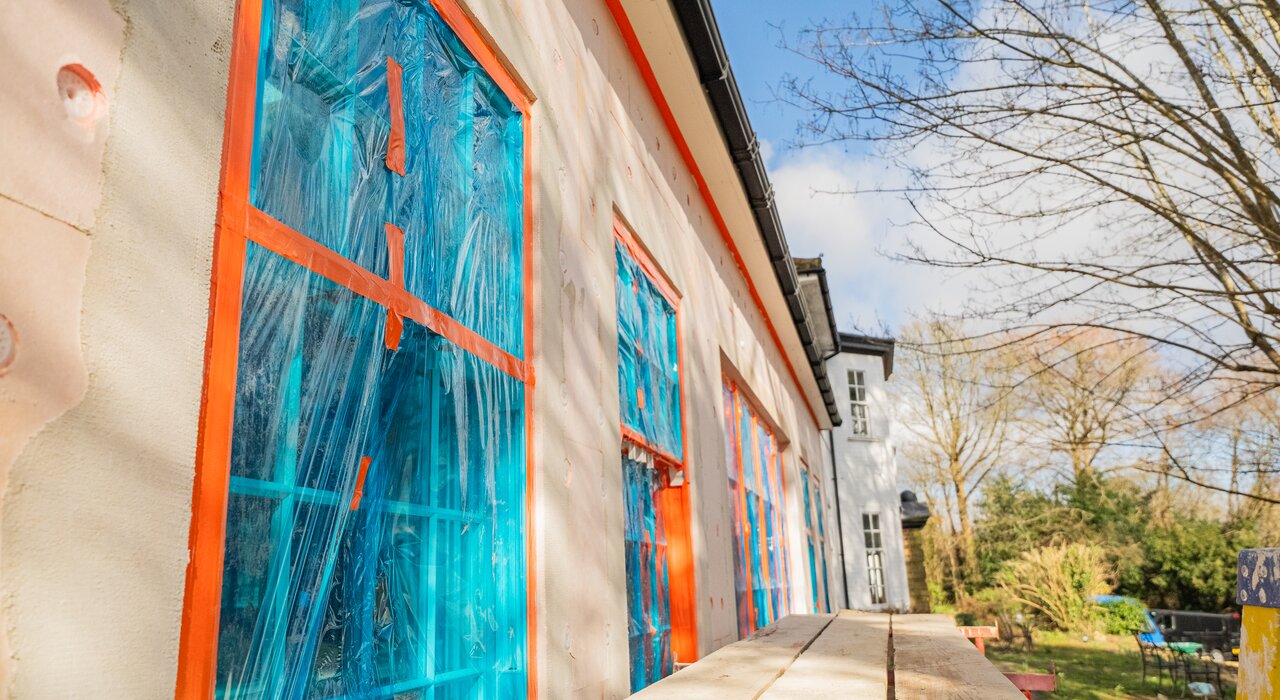

Exterior view of property with newly installed EPS insulation boards and fully masked windows, ready for topcoat render. Window masking is essential to protect frames during rendering. EWI Store supplies complete EWI systems with preparation accessories.

The concept of a thermal envelope is a crucial consideration for the effectiveness of a retrofit. No energy efficiency measures exist in isolation. In fact, they all possess a level of symbiosis which is integral to the overall strategy. Insulation as a whole must work together to create said thermal envelope. In today's blog, we will discuss what the thermal envelope is, how it works, and how other energy efficiency measures support it.

The concept of a thermal envelope encapsulates the physical components of a building that collectively work to control the internal climate by acting as a buffer against the external environment. This barrier is crucial for maintaining energy efficiency and ensuring a comfortable living or working space. Below, we delve deeper into the key components of a thermal envelope and their respective roles:

  1. Insulation: The backbone of an effective thermal envelope is its insulation. This component is designed to resist heat transfer, whether keeping warmth inside during colder months or preventing heat from entering during warmer seasons. Insulation is typically installed in walls, roofs, and floors. Materials vary widely from traditional options like fibreglass and cellulose to advanced foams and eco-friendly choices like sheep's wool.
  2. Windows and Doors: These elements are often weak links in the thermal envelope due to their potential for air leakage and thermal bridging. Advanced technologies in window design include double or triple glazing filled with inert gases like argon to minimise heat transfer. Well-designed doors with proper seals also prevent air leaks.
  3. Air Barriers: These are critical in preventing the infiltration of outside air and the exfiltration of conditioned air. Air barriers can be made from various materials such as house wraps, sheathing tapes, and specially designed membranes. Their installation is vital around the entire building to ensure there are no leaks, especially at joints and points of structural connection.
  4. Vapour Barriers: Moisture control is another essential function of the thermal envelope. Vapour barriers prevent the diffusion of water vapour into insulation and walls, where it can condense into a liquid, potentially leading to structural damage or mould growth. These barriers are typically sheets of plastic or foil installed on the warm side of the insulation.
  5. Thermal Bridges: A thermal bridge occurs when a more conductive (less insulative) material allows heat to flow across the thermal envelope easily. These gaps are essentially heat highways, as heat will always look for the path of least resistance. Common areas include wood framing in walls, concrete floor slabs, and metal fasteners. Minimising thermal bridges is crucial for maintaining the integrity of the thermal envelope's insulative properties.

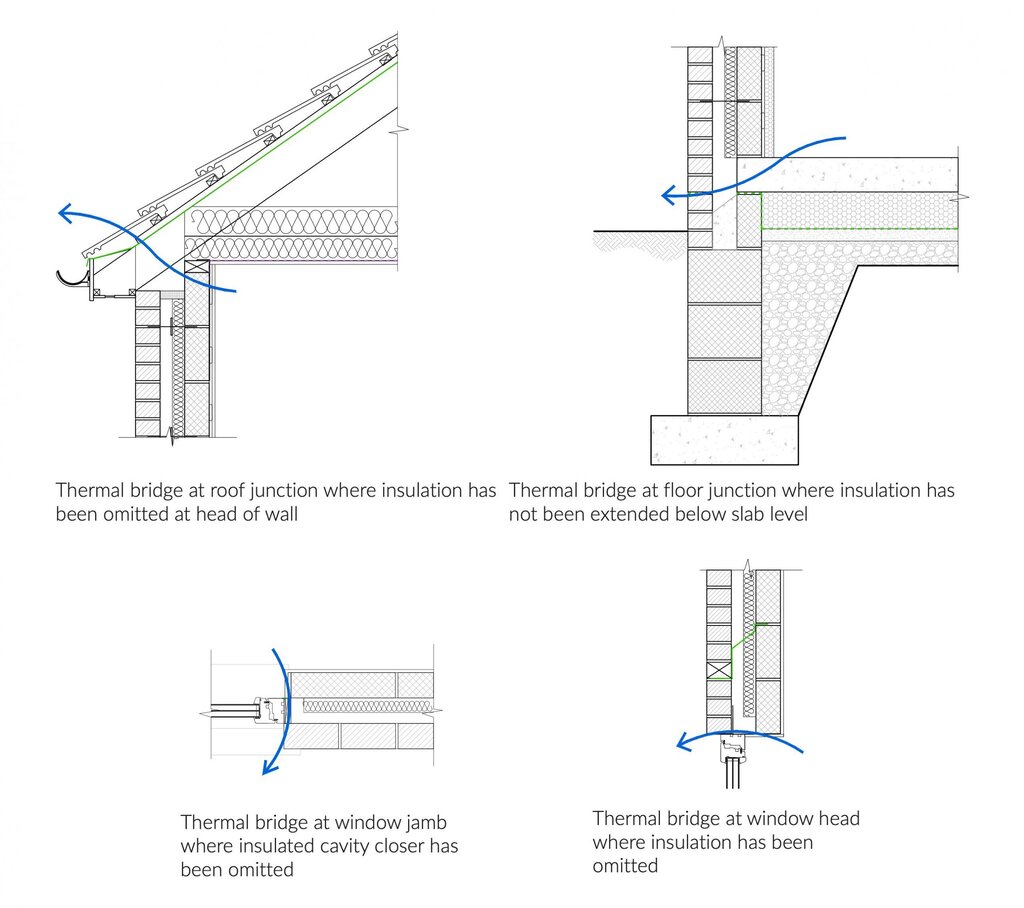

Technical diagram highlighting thermal bridges at critical junctions: roof, floor, and window connections. Proper insulation design eliminates these cold spots, improving energy efficiency and preventing moisture issues. EWI Store provides technical support for bridging thermal gaps in all construction types.

The effectiveness of a thermal envelope greatly depends on its design and the quality of construction. The design should consider local climate conditions to choose appropriate materials and strategies. For instance, in colder climates, the emphasis might be on thicker insulation and more robust air barriers, while in warmer, humid climates, vapour barriers and ventilation become more significant. Attention to detail is critical during construction. Even small gaps or misalignments can significantly undermine the thermal envelope's effectiveness.

The thermal envelope acts as a continuous barrier that limits heat transfer between the interior and exterior of a building. During winter, the envelope helps to keep the heat generated by the heating system inside, preventing it from escaping to the colder outside. Conversely, in summer, it prevents outside heat from penetrating the building, thus reducing the load on air conditioning systems. This dual function significantly reduces the need to continuously run heating and cooling systems, thereby lowering energy consumption. A thermal envelope's efficiency largely depends on two key factors: insulation quality and air-sealing effectiveness. Insulation reduces unwanted heat flow, while air sealing prevents air leaks. These elements ensure the indoor climate is maintained with minimal energy expenditure. For instance, upgraded insulation in the roof and walls can prevent heat from escaping during the colder months. It also blocks warm air from entering during hot weather. Similarly, eliminating drafts through comprehensive air sealing around windows, doors, and joinery ensures that conditioned air stays inside. This reduces the need for constant heating or cooling. The direct impact of a thermal envelope on energy efficiency is clearly reflected in reduced utility bills. Buildings with well-designed thermal envelopes often see a significant decrease in energy costs. Moreover, the reduced energy demand directly correlates with a lower carbon footprint. As buildings consume less energy for heating and cooling, they emit fewer carbon emissions, contributing positively to environmental sustainability. This is particularly crucial in the context of global efforts to reduce energy consumption and combat climate change.

One of the primary comfort benefits of a robust thermal envelope is its ability to stabilise indoor temperatures. The thermal envelope helps maintain a consistent indoor climate regardless of external weather conditions by minimising the infiltration of external air and the escape of conditioned air. This means warmer interiors during cold winters and cooler conditions during hot summers without fluctuations often occurring in poorly insulated buildings. The consistency in temperature eliminates the discomfort of drafts and cold spots, which are common issues in buildings with inadequate insulation. Beyond temperature, the thermal envelope is crucial in managing indoor humidity levels. Properly designed barriers within the envelope prevent excessive moisture from entering the building, which can be a significant problem in humid climates. High humidity can lead to condensation problems, dampness, and mould growth, all of which are detrimental to the building's structure and the health of its occupants. By keeping humidity levels in check, the thermal envelope ensures a healthier living environment free from mould and mildew, which are known to cause respiratory problems and other health issues. Another often overlooked aspect of comfort provided by a thermal envelope is noise reduction. Components of the thermal envelope act as sound barriers that diminish the penetration of noise from outside. This is particularly beneficial in urban areas or locations near busy roads. Reducing noise pollution contributes to a more serene and peaceful indoor environment, enhancing relaxation and concentration.

Vapour barriers are essential components of a thermal envelope, designed to prevent moisture from passing into insulation layers and wall cavities where it can condense into water. This condensation can lead to various structural problems, such as wood rot, corrosion of metal components, and the breakdown of insulation materials. By placing vapour barriers on the warm side of the insulation, these problems can be effectively mitigated. In climates with significant seasonal variations, vapour barriers must be carefully integrated to manage the shifting dynamics of moisture movement. Air sealing complements the function of vapour barriers by preventing moist air from entering through leaks and openings in the building envelope. Common air infiltration points include windows, doors, and utility penetrations. These allow warm, moist air to enter and condense within cooler interior surfaces. Proper air sealing not only enhances energy efficiency but also significantly reduces the risk of moisture-related damage by maintaining a controlled internal environment. The selection of materials and their assembly is crucial for preventing moisture damage. Materials that are moisture-resistant and can breathe are ideal for areas prone to dampness. Additionally, construction techniques that create a continuous barrier against moisture—such as overlapping moisture barriers, sealing joints with moisture-resistant tapes, and ensuring proper drainage planes—are vital for the long-term effectiveness of the thermal envelope. Close-up of condensation forming on the inside of a double-glazed window. This moisture issue is often caused by inadequate ventilation or insulation. EWI Store’s breathable renders and insulation systems help reduce condensation risk in homes.

Buildings with effective thermal envelopes play a crucial role in sustainability.

They require less energy to heat and cool, which reduces the greenhouse gas emissions associated with energy production. Climate change is a significant concern, and ensuring that our buildings are as energy-efficient as possible is crucial.

An uninterrupted insulation envelope means that every part of the building's shell — floors, walls, and roof — is adequately insulated to prevent thermal bridging, where heat bypasses the insulated sections through less insulated or uninsulated components.

  1. Floor Insulation: Insulating the floor is particularly crucial in buildings over unheated spaces like garages or crawl spaces. Options for floor insulation include rigid foam boards, spray foam, or batt insulation fitted between floor joists. Ensuring the floor insulation is continuous and connects seamlessly with the wall insulation at the perimeter reduces heat loss at these critical junctions.
  2. Wall Insulation: Walls are typically insulated with materials such as fibreglass batts, cellulose, spray foam, or rigid panels. It is vital to fill all cavities and voids for maximum effectiveness. Advanced techniques like double-wall construction can increase the wall cavity size. This allows for more insulation and minimises thermal bridging through the studs. Continuous rigid insulation can be applied externally over the wall studs or internally, adding an extra layer that bridges the gaps between the insulated cavities.
  3. Roof and Ceiling Insulation: For attics, loose-fill or batt insulation can be applied between rafters, while spray foam can provide an airtight seal. In cases where the attic space is used, insulating along the roof line with spray foam or rigid foam boards can be effective.

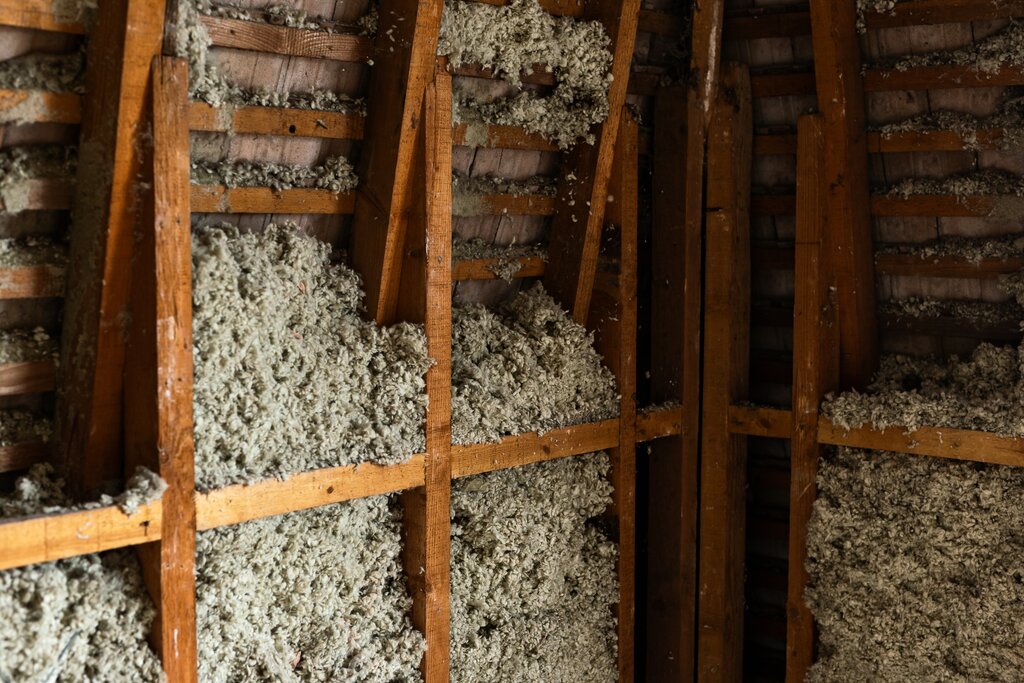

Creating an uninterrupted insulation envelope is not just about adding material. It also involves integrating these elements into a seamless unit. This means ensuring that insulation layers overlap or connect at all transition points—between the floor, walls, and roof. Additionally, sealing all potential air leaks with appropriate caulking or foam is essential. This air sealing complements the insulation by preventing warm or cool air from escaping, thereby maintaining the insulation's efficacy. Close-up of loose-fill cellulose insulation packed between timber rafters in a loft space. This eco-friendly material provides excellent thermal and acoustic insulation, ideal for hard-to-reach roof spaces. EWI Store offers a full range of roof and loft insulation solutions.

Once leak points are identified, several techniques can be applied to seal them effectively:

  1. Caulking: This is used for sealing smaller gaps (less than 1/4-inch wide) around window and door frames and between baseboards and walls. The right type of caulk depends on the material surfaces being sealed and environmental exposure.
  2. Spray Foam: Expandable spray foam is ideal for larger gaps (greater than 1/4-inch wide). It is particularly useful around utility penetrations and in gaps where different types of building materials meet.
  3. Weatherstripping: This method is applied around movable components like doors and operable windows. It involves applying materials that can compress when the window or door is closed, creating an airtight seal.
  4. Gaskets: These are used in electrical outlets and switch boxes on exterior walls to prevent air from leaking through these spaces.
  5. Flashing: Metal or plastic flashing can be installed to seal and protect joints where different building materials meet, particularly around chimneys and at roof intersections.

For the best results, air sealing should be integrated with insulation upgrades. This involves a layered approach where air barriers are established to complement the thermal barriers provided by insulation. Ensuring that both barriers are continuous and overlap at critical points is crucial to forming an effective seal against heat and air movement.

High-quality windows are crucial to an effective thermal envelope, providing significant energy efficiency, comfort, and noise reduction benefits. Double and triple-glazed windows, in particular, offer superior performance compared to single-glazed windows. These windows incorporate multiple layers of glass with insulating air or gas between each layer.

  • Double-Glazed Windows: These windows consist of two panes of glass separated by a layer of air or inert gas. The gas layer acts as an insulator, significantly reducing the transfer of heat and cold through the window. Double glazing effectively maintains a consistent indoor temperature and reduces energy costs by minimising the need for heating and cooling.
  • Triple-Glazed Windows: Triple-glazed windows go a step further, featuring three layers of glass with two insulating layers of gas. These windows provide an even greater barrier against temperature variation, making them ideal for extremely cold climates. The additional pane and gas layer also reduce noise, making these windows suitable for homes in noisy environments.
