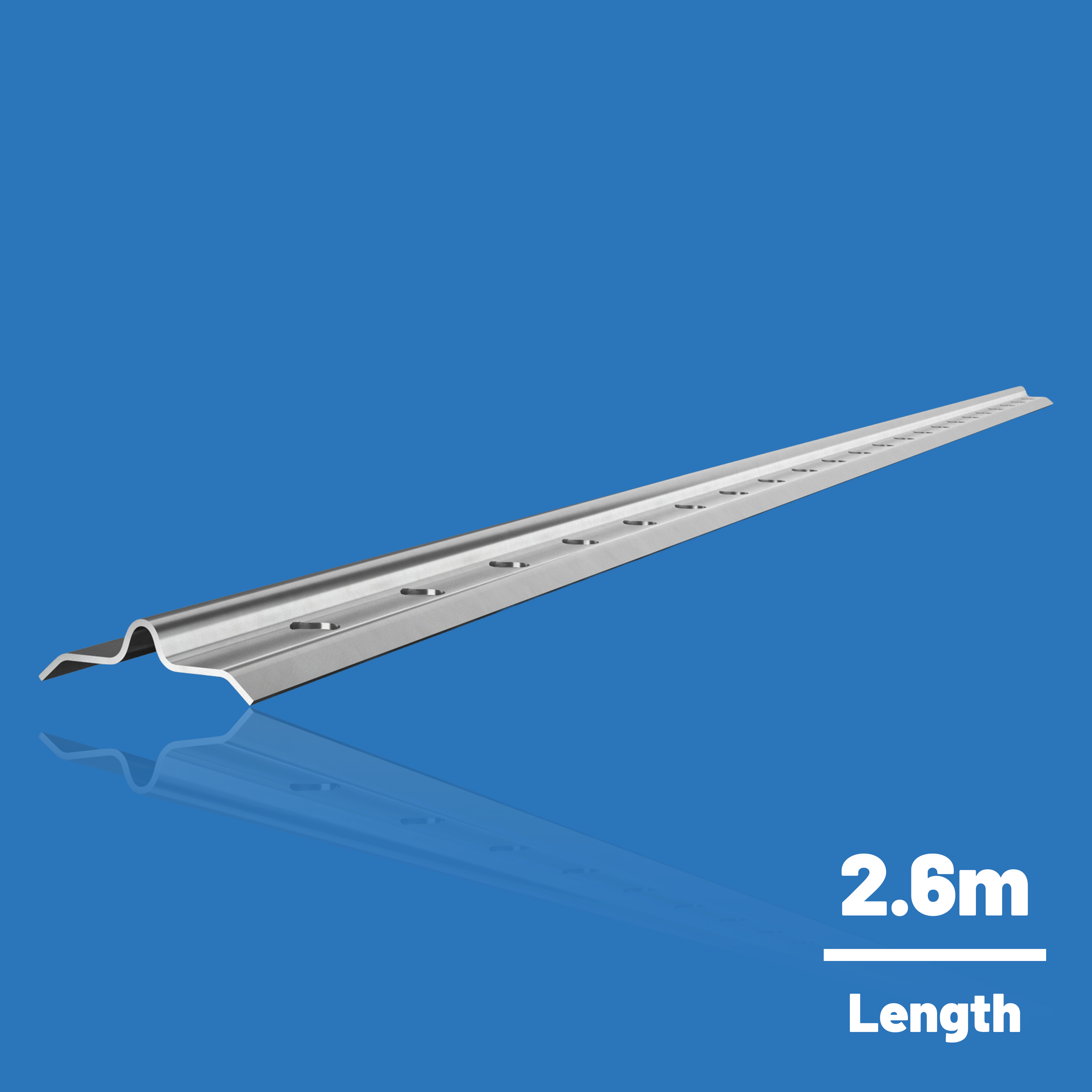

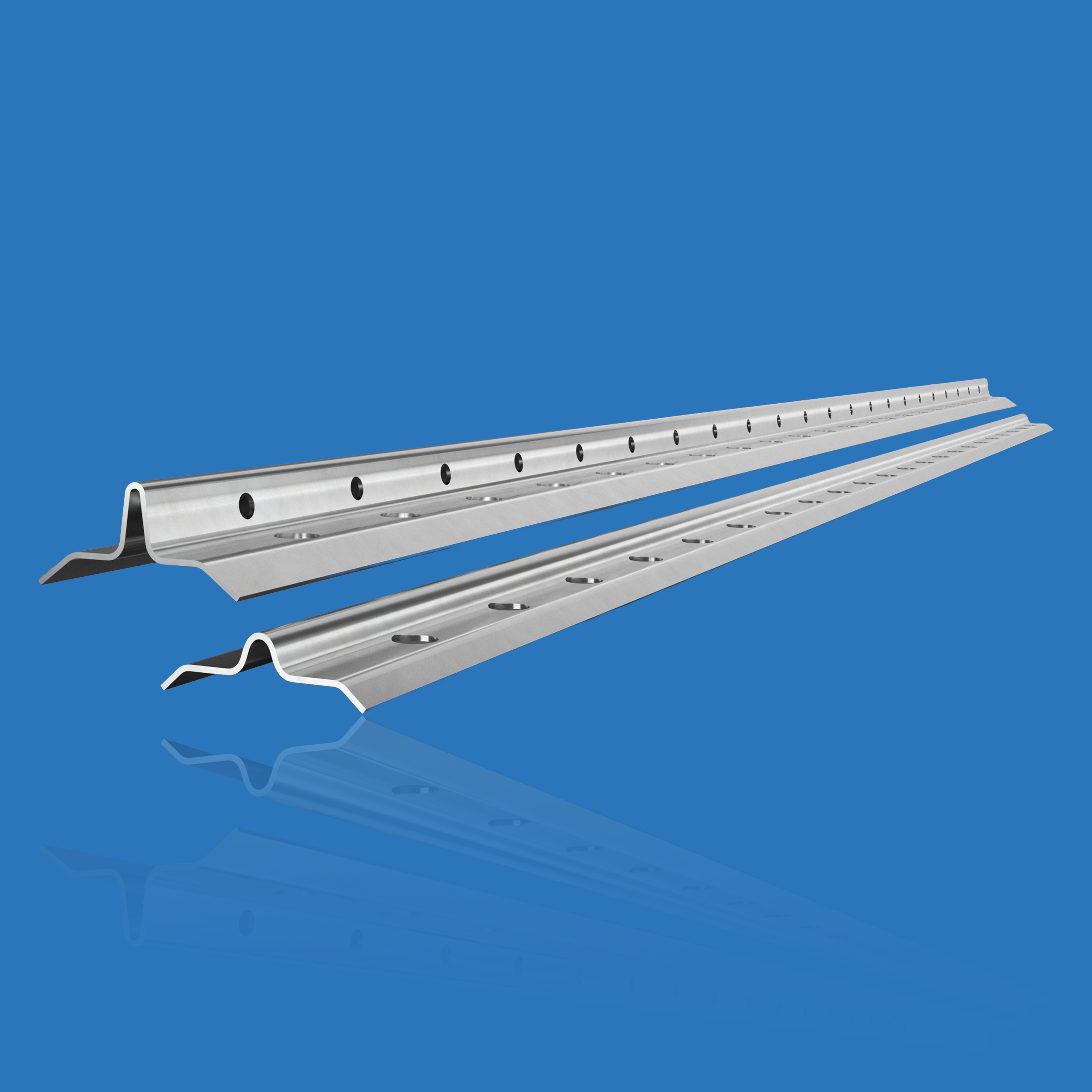

The Galvanised Steel Plaster Depth Bead provides a rigid guide for achieving an accurate and consistent plaster thickness across internal walls and ceilings.
Once positioned, the bead creates a defined surface for ruling off the plaster, helping installers work more efficiently while maintaining an even depth across larger areas. Its rigid profile helps the bead retain its shape during application, supporting a straight and uniform finished surface.
Manufactured from zinc-coated steel, the bead offers strength and long-term protection against corrosion when used in suitable dry internal environments. It is available in 6mm and 10mm plaster depths, with a choice of 2.6m or 3m lengths.
The bead may be used with gypsum-based plaster where adequate ventilation is maintained throughout application and drying. The completed area must also remain protected against ongoing moisture and high humidity.
Key Features
- Helps create an accurate and consistent plaster thickness
- Provides a rigid guide for ruling off plaster
- Reduces the time required to level larger plastered areas
- Available in 6mm and 10mm plaster depths
- Choice of 2.6m and 3m lengths
- Strong zinc-coated steel construction
- Designed for internal plastering applications
- Suitable for gypsum-based plaster under appropriate dry conditions
Technical Information
| Specification |
Details |
| Material |
Zinc-coated steel |
| Available plaster depths |
6mm and 10mm |
| Available lengths |
2.6m and 3m |
| Profile dimensions |
21mm × 6mm or 21mm × 10mm |
| Application |
Internal walls and ceilings |
Important Application Note
When using the bead with gypsum-based plaster, provide sufficient ventilation during installation and drying. Do not use it where persistent moisture or high humidity may occur.
