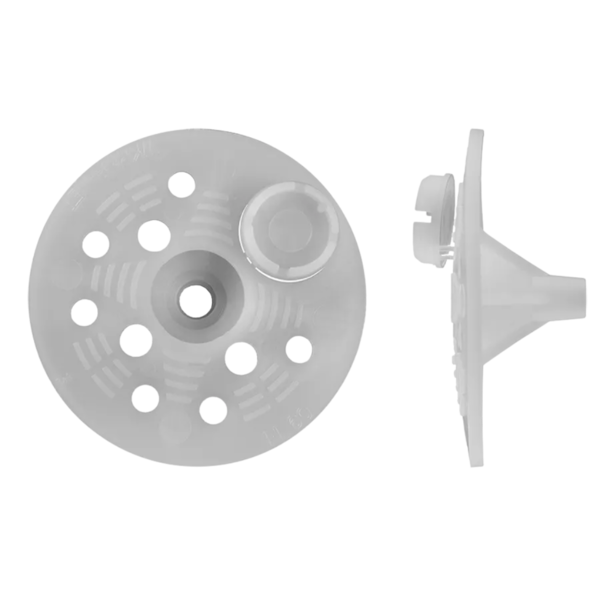

The Universal Fixing Disc – 60mm is a versatile insulation support collar designed for use with screw-in EWI fixings, including timber and sheet-steel screws. It provides a secure anchoring surface for insulation boards when installed on timber substrates, sheet metal, fibre-cement boards, and OSB/plywood. Manufactured from durable polymer, the disc distributes load evenly across the insulation surface and helps reduce the risk of board damage or pull-through.

The disc includes an integrated cap to minimise thermal bridging and seal the fixing head, offering a clean and durable finish. Suitable for surface-mounted installation, it is compatible with a range of insulation materials including EPS and Mineral Wool. Simply select the appropriate screw length to accommodate insulation thickness and embedment depth.

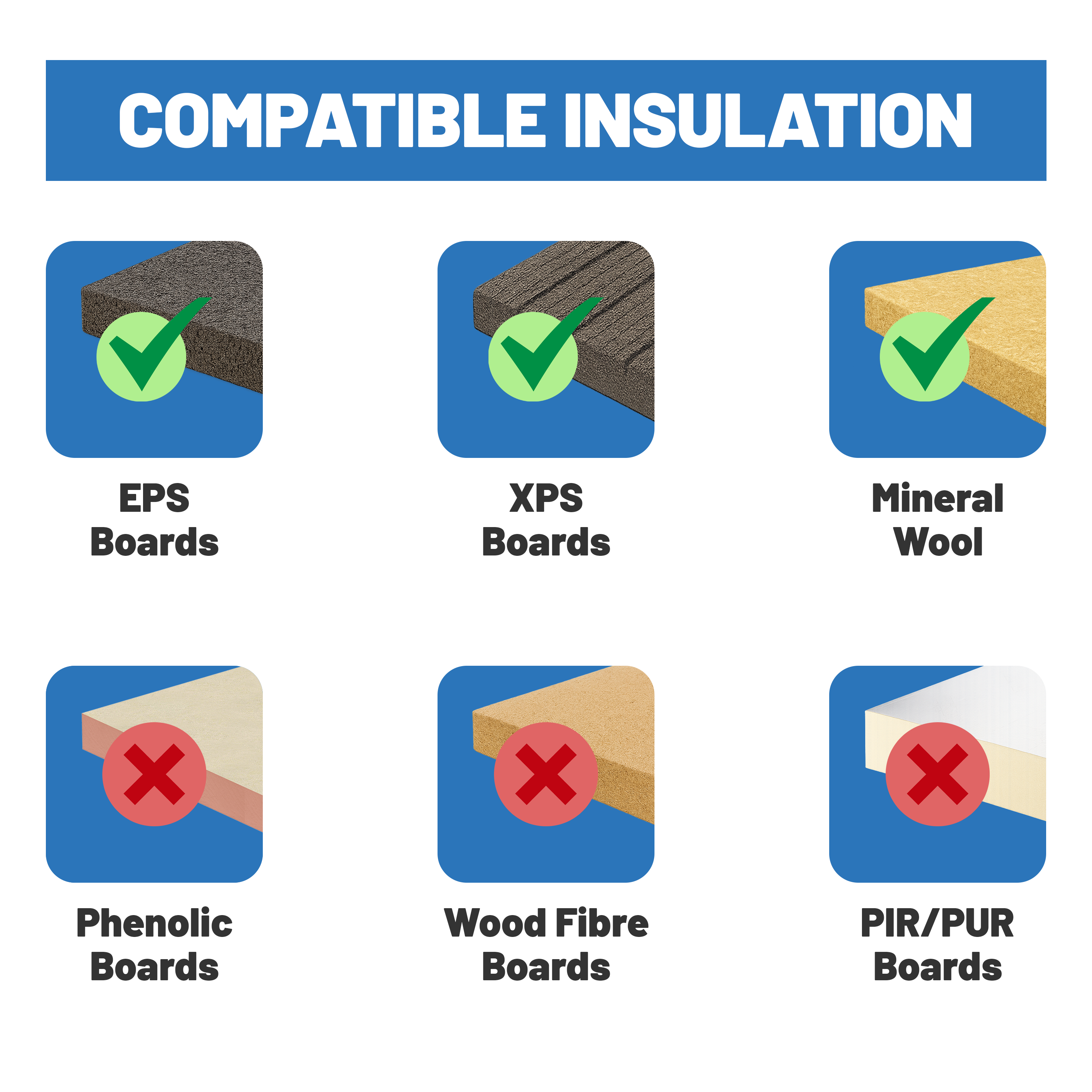

Suitable Insulation Boards

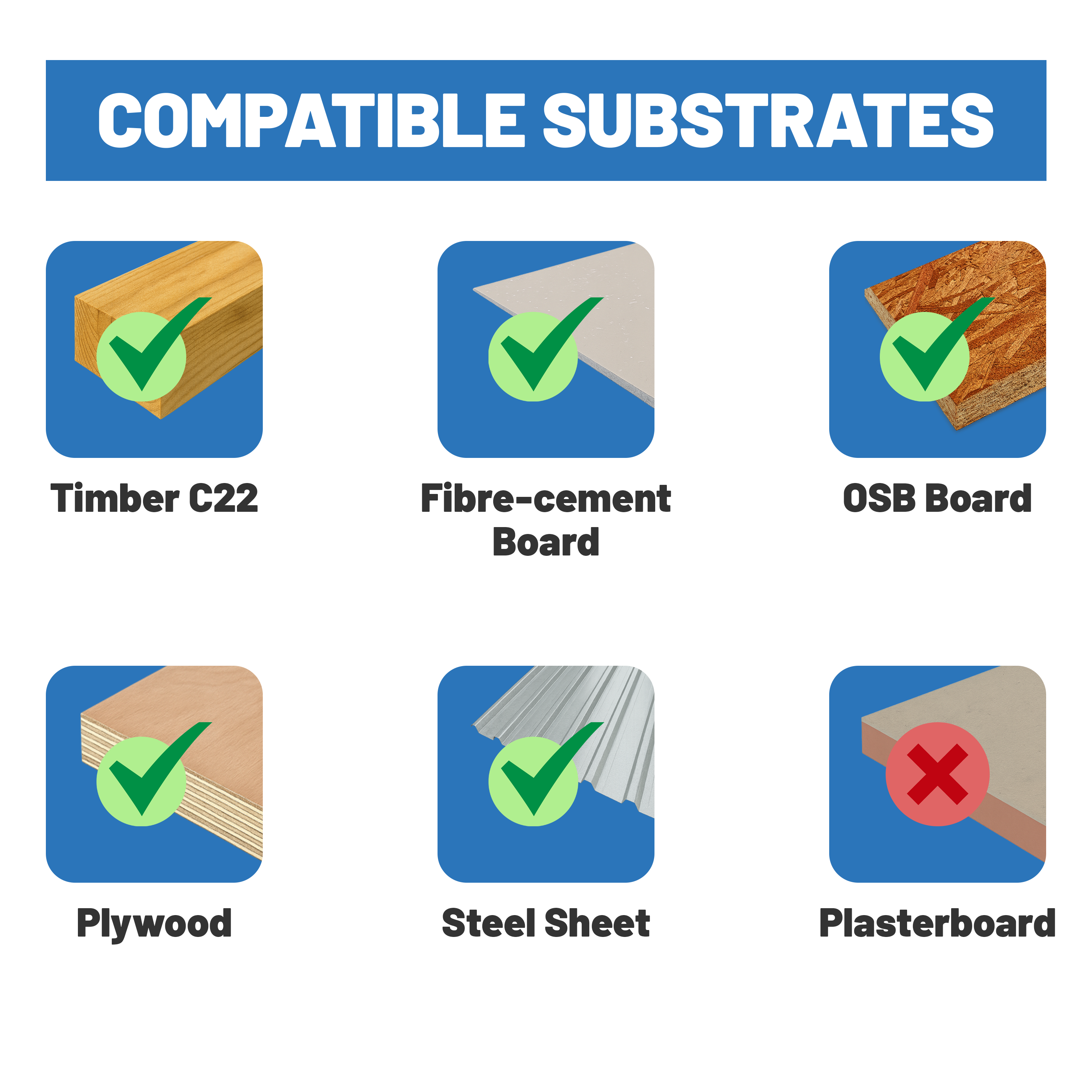

Compatible Substrates

Use with appropriate screws (e.g., timber screws or thin-sheet metal screws). For masonry substrates, use standard EWI hammer or screw fixings instead.

Key Features

• Universal insulation support collar for timber and steel-sheet substrates.

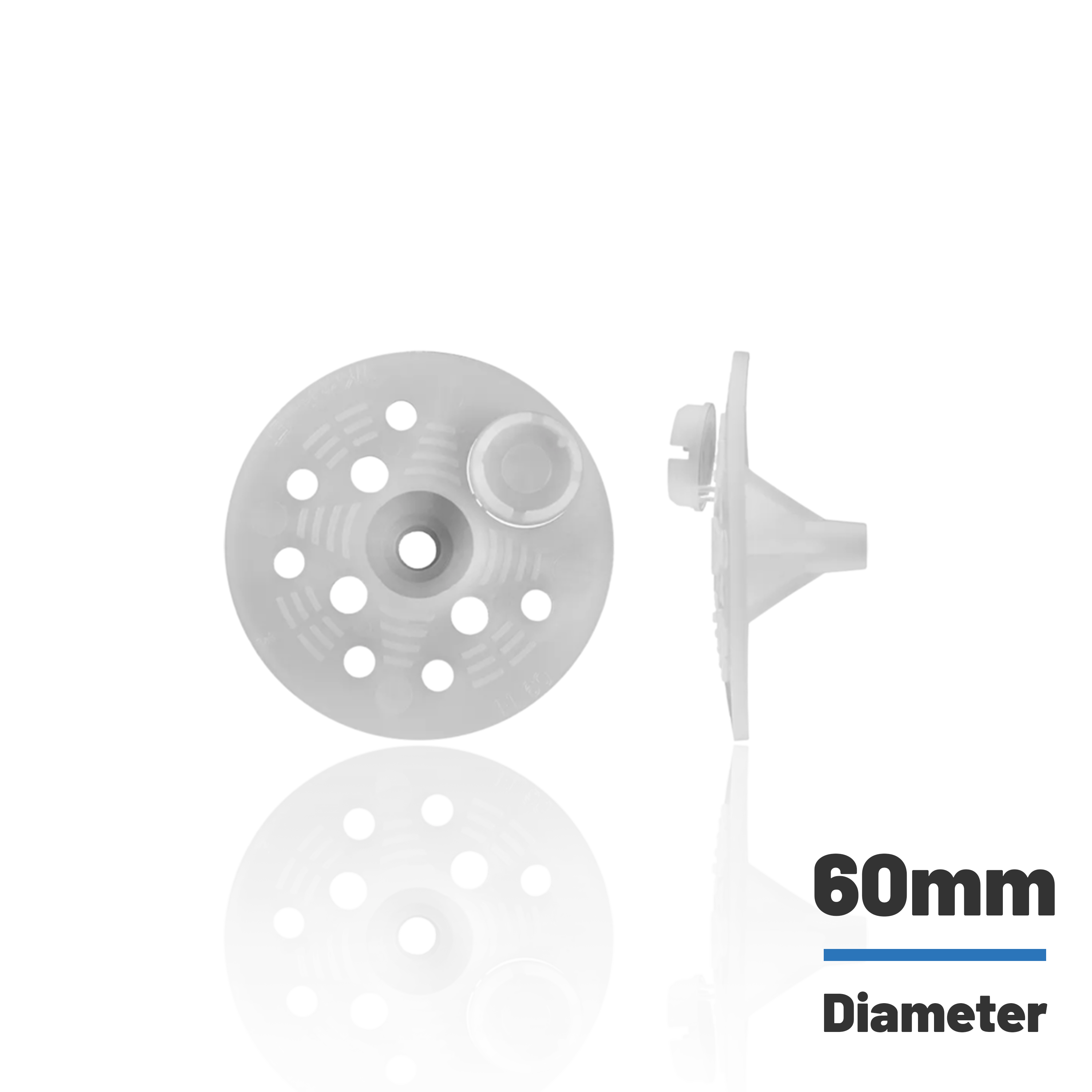

• 60mm disc diameter provides strong load distribution and prevents insulation pull-through.

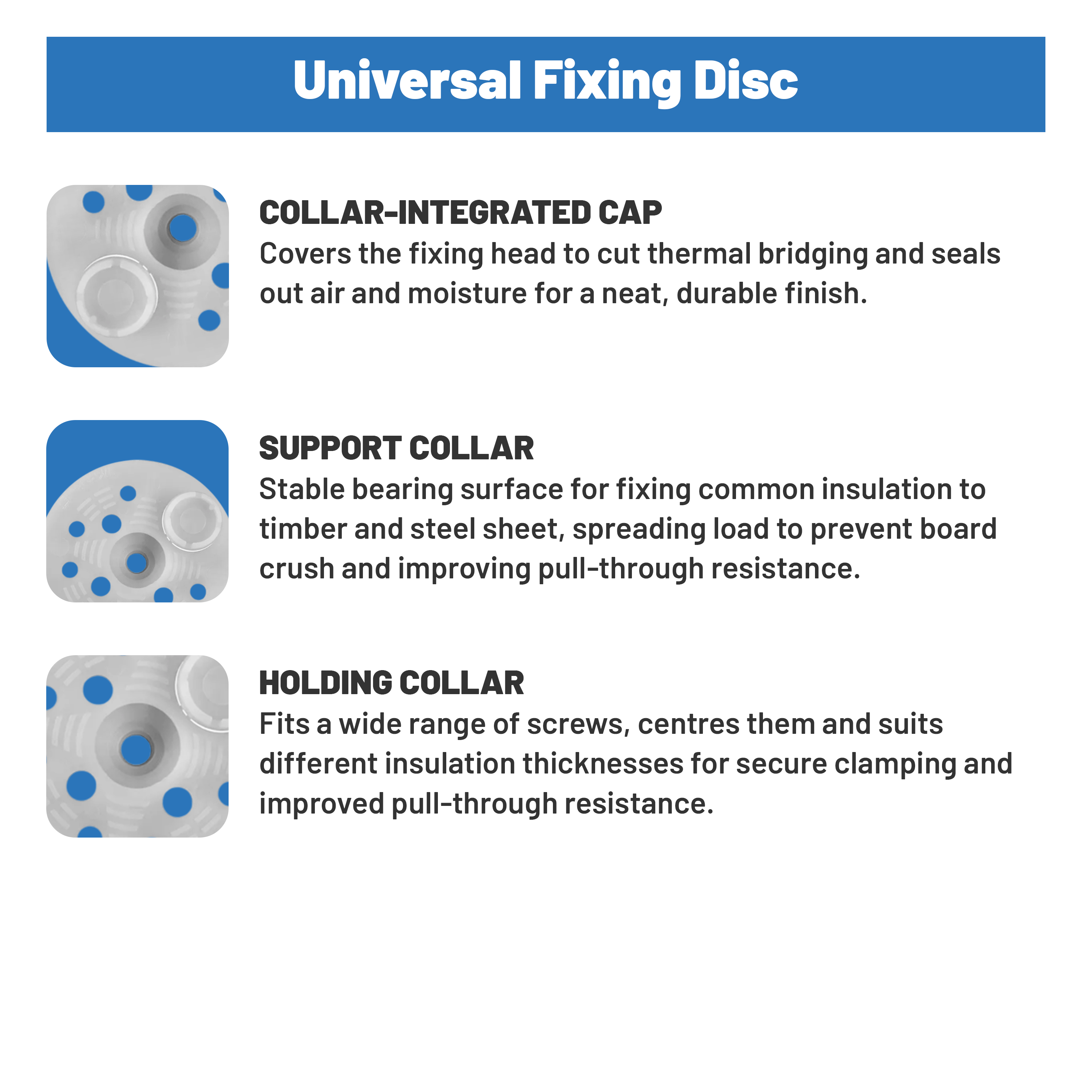

• Integrated cap seals the fixing head and minimises point thermal bridging.
• Compatible with EPS, XPS, PIR and Mineral Wool insulation boards.
• Suitable for surface-mounted installation.
• Ideal for use with KMH screws and other screw-in fixing systems.

Sizes & Box Quantities

Select screw length to suit insulation thickness + embedment depth into substrate.

Application

Preparation

• Confirm substrate type (timber, OSB/plywood, fibre-cement, thin steel sheet).
• Select appropriate screw (e.g., timber screw or thin-sheet steel screw).
• Ensure insulation is aligned and adhesive applied if specified by the system design.

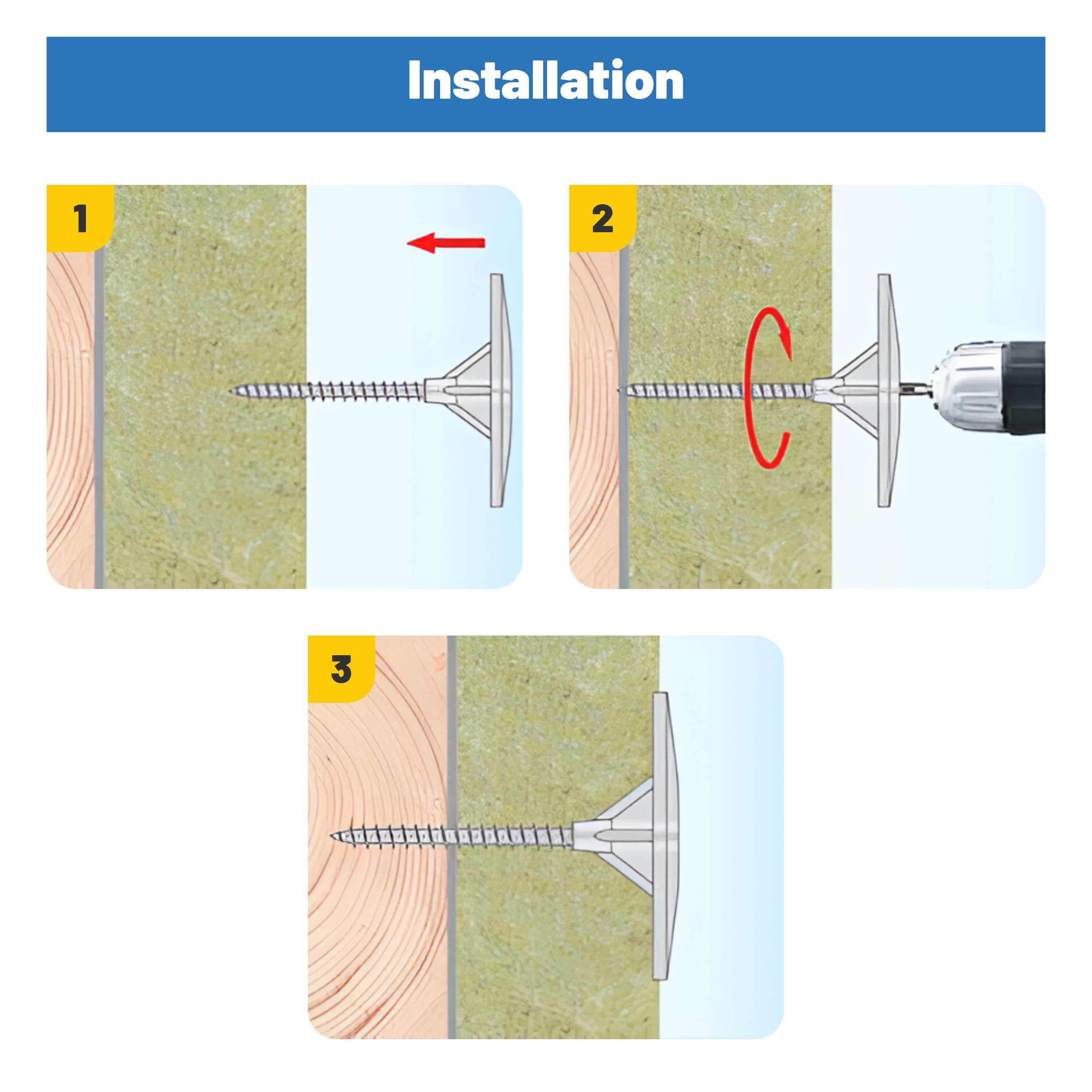

Installation steps

1. Position the fixing disc against the insulation surface.
2. Insert the selected screw through the disc centre.
3. Drive the screw into the substrate until the disc sits flush — avoid overtightening.
4. Continue fixing to required density and pattern for system design.

Fixing pattern & density

• Follow project-specific EWI design guidance.
• Typical guidance for timber/steel sheathing installations: 4–6 fixings/m², with increased density at openings and corners.

Quality checks

• Ensure discs sit evenly and flush with insulation surface.
• Confirm screws achieve firm hold without crushing insulation.
• Replace any discs or screws that do not seat securely.
