How Do You Insulate a Flat Roof?

Flat roofs are a common feature in many buildings across the UK, offering a contemporary look and efficient use of space. However, one of the challenges with flat roofs is ensuring they are properly insulated. Good insulation is crucial not only for maintaining a comfortable indoor temperature but also for reducing energy costs and minimising the carbon footprint of a building. In this article, we’ll explore the key steps and considerations for insulating a flat roof effectively.

What is flat roof insulation?

When it comes to flat roof insulation, it’s imperative to grasp not only its importance but also the unique challenges it presents. Flat roofs are distinct from pitched roofs in several ways, which impacts how they should be insulated. The primary reason for insulating any roof is to reduce heat loss. In flat roofs, this is especially crucial due to their structure. Heat rises and, in buildings with flat roofs, there’s less space and often less ventilation between the living space and the roof. This makes them more susceptible to heat loss compared to pitched roofs.

Additionally, flat roofs are prone to water pooling due to their low slope. Insulation helps maintain a consistent temperature on the roof’s surface, reducing the likelihood of ice dams forming in colder weather, which can lead to water ingress.

Challenges specific to flat roofs
  1. Condensation Risk: Flat roofs are more at risk of condensation build-up. When warm air from inside the building comes into contact with the colder surface of an uninsulated roof, condensation can form, leading to potential dampness and mould problems.
  2. Space Limitations: Unlike pitched roofs, where there’s often ample space for thick layers of insulation, flat roofs may not offer much space between the roof surface and the ceiling below. This can limit the types of insulation that can be used.
  3. Load Bearing Capacity: The insulation material and method need to consider the roof’s ability to bear additional weight, especially when opting for heavy insulation materials.
  4. Waterproofing Integration: Ensuring that the insulation works well with the waterproofing system is crucial. Ineffective integration can lead to leaks and reduce the lifespan of the roof.
Understanding U-values

A key aspect of insulation is understanding U-values, which measure how effective a material is as an insulator. The lower the U-value, the better the material is at keeping heat inside the building. UK building regulations specify maximum U-values for different parts of a building, including roofs. For flat roofs, the target U-value will often dictate the thickness and type of insulation needed.

Ventilation considerations

Proper ventilation is essential in flat roof insulation to avoid the build-up of condensation. This is particularly important in cold roof insulation methods, where there needs to be a gap for airflow between the insulation and the underside of the roof.

Sustainability and environmental impact

With increasing awareness of environmental issues, the sustainability of insulation materials has become a key consideration. Materials like mineral wool or certain types of foam insulation have different environmental footprints, and their production, lifespan, and disposal all need to be considered.

Types of flat roof insulation

Polyisocyanurate (PIR) Board

Polyisocyanurate, commonly known as PIR, is renowned for its impressive thermal efficiency. Comprising rigid foam panels often faced with aluminium foil, PIR boards stand out for their excellent R-value, ensuring substantial insulation in a relatively thin layer. This feature makes PIR a go-to choice for space-constrained applications. Moisture resistance and durability are other key benefits, making PIR boards a versatile option, particularly in warm flat roof setups.

Expanded Polystyrene (EPS)

Expanded Polystyrene, or EPS, presents a cost-effective and lightweight insulation solution. It’s created by expanding and fusing polystyrene beads, resulting in a rigid foam that balances cost with performance. While it may not offer the same high R-value as PIR, EPS is commendable for its water resistance and decent thermal insulation properties. Its versatility makes it suitable for various flat roof applications. It’s suitable for both warm and cold roof designs and is particularly appealing for projects where budget constraints are a significant consideration.

Extruded Polystyrene (XPS)

Extruded Polystyrene, known as XPS, is another polystyrene-based foam insulation, but with a distinct manufacturing process that yields a uniform closed-cell structure. This process grants XPS a higher compressive strength compared to EPS. This makes it an ideal choice for areas that expect foot traffic or heavy loads, such as green roofs or terraces. Besides its structural robustness, XPS offers superior moisture resistance and a higher R-value, enhancing its suitability for demanding flat roof conditions.

Mineral Wool

Mineral wool insulation, including rock wool, is manufactured from rock fibres or recycled slag from steel mills, offering a unique set of benefits. Its foremost advantage is its exceptional fire resistance, coupled with impressive sound insulation capabilities. Mineral wool’s breathable nature also reduces the risk of condensation, an essential factor in flat roof insulation. Often used in tandem with other insulating materials, it’s particularly useful in urban settings for its noise reduction properties and in scenarios where enhanced fire resistance is required.

Spray Foam

Spray foam can form an airtight seal and deliver high R-values. Applied as a liquid, it expands and hardens into a solid foam, conforming perfectly to the roof’s shape, including irregular surfaces and protrusions. This makes spray foam an excellent choice for both warm and cold roof systems, particularly in complex roof designs. However, it’s important to note that spray foam is more expensive than other options and requires professional installation.

Glass Wool

Glass wool offers an effective yet lighter alternative. Often available in batts or rolls, it’s easier to handle and install compared to heavier insulators. Glass wool is not just effective for thermal insulation but also provides sound-dampening benefits. Its affordability makes it a popular choice for flat roofs where budget considerations are paramount, without compromising on insulation quality.

Green Roof Systems

Green roof systems, with their soil and vegetation layers, provide a natural form of insulation. Beyond their insulating properties, green roofs are lauded for their environmental benefits, including reducing rainwater runoff and improving air quality. These systems are particularly appealing in urban areas, where space for greenery is limited. However, they require a robust structural foundation due to their weight and are part of a broader eco-friendly architectural approach.

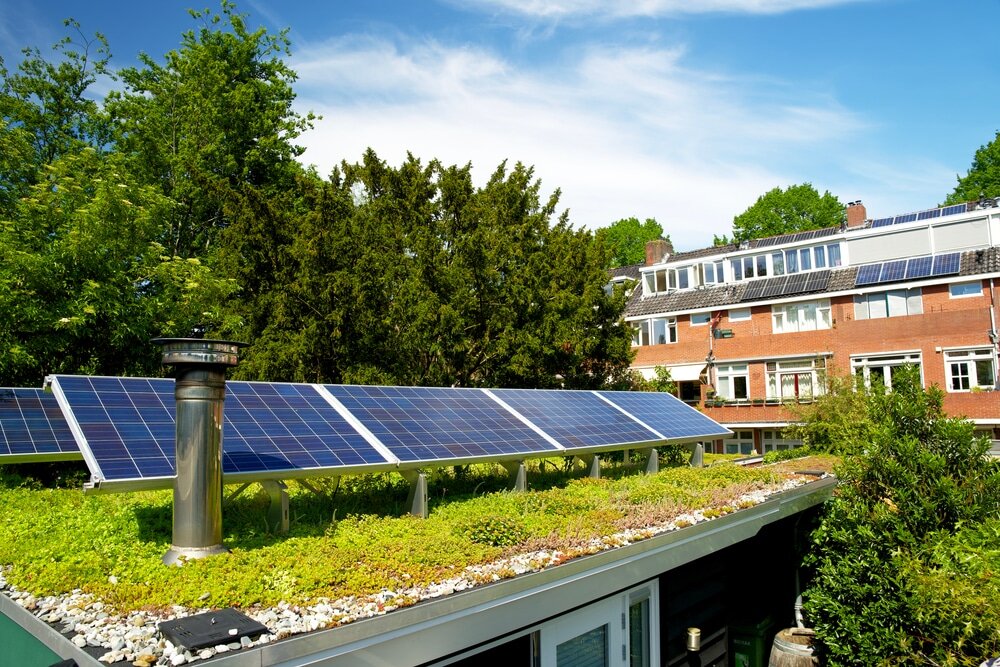

green roof insulation for a flat roof with solar panels

Methods of insulation

There are two primary methods for insulating a flat roof. Cold roof insulation involves placing insulation material between the roof joists. This method is generally less expensive but can be prone to condensation issues if not properly ventilated. Warm roof insulation involves Insulation laid on top of the existing roof structure, with a new weatherproof layer on top of the insulation. This method is more effective at preventing heat loss and condensation problems.

How to insulate a flat roof

  1. Select Suitable Insulation Material: Base your choice on the local climate, roof structure, and budget constraints. Polyisocyanurate (PIR) or Expanded Polystyrene (EPS) boards are often adequate for UK conditions.
  2. Prepare the Roof Surface: Thoroughly clean the roof, ensuring it’s dry and free from debris. Repair any existing damage to the roof surface before proceeding with insulation installation.
  3. Install the Insulation: In cold roof setups, position the insulation between roof joists, maintaining a ventilation gap to avoid condensation. For warm roofs, lay insulation boards directly atop the roof surface, ensuring they are tightly joined to prevent thermal bridging.

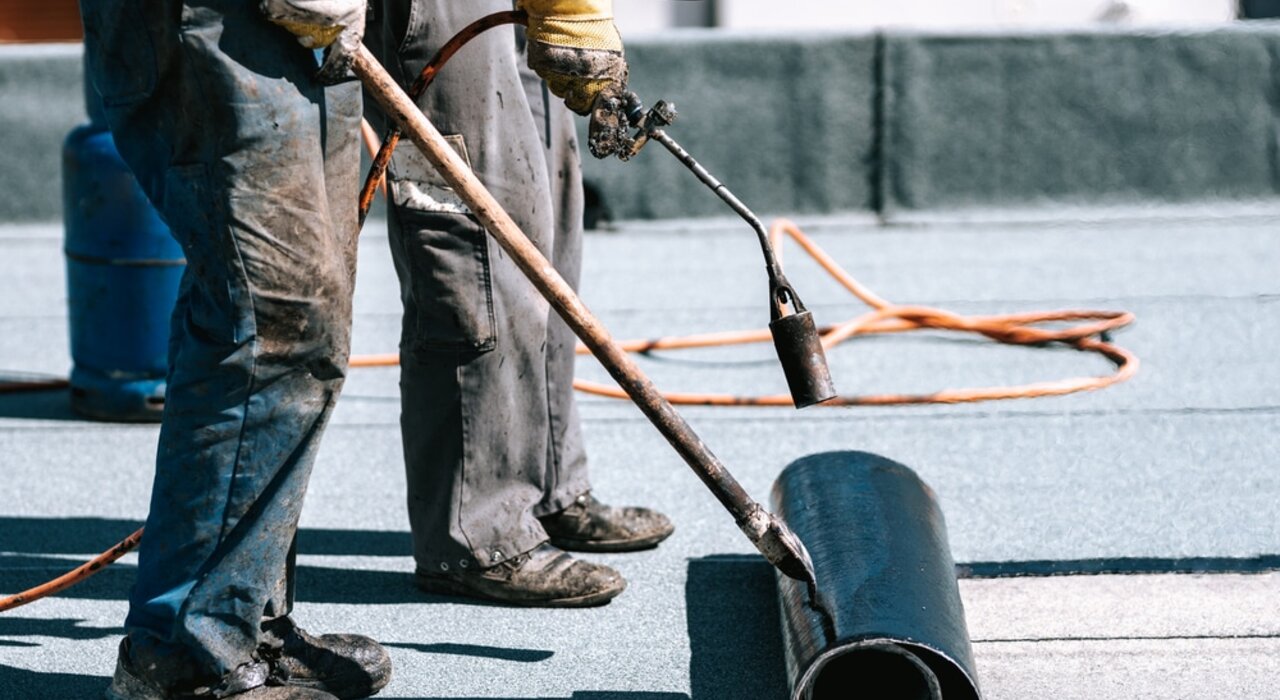

  4. Add a Weatherproof Layer: On warm roof constructions, install a new weatherproofing layer over the insulation, such as a roofing felt, a rubber membrane, or a liquid waterproofing system.
  5. Apply Finishing Touches: Seal all edges and joins to eliminate air leaks. For warm roof systems, incorporate additional finishes like edge trims for a complete installation.
