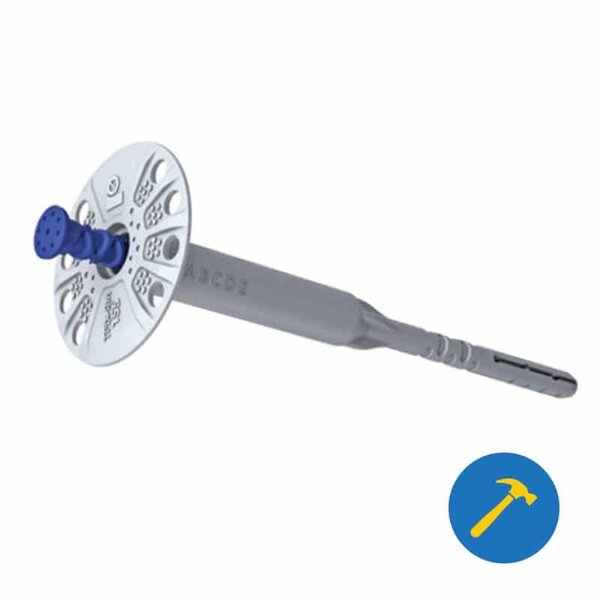

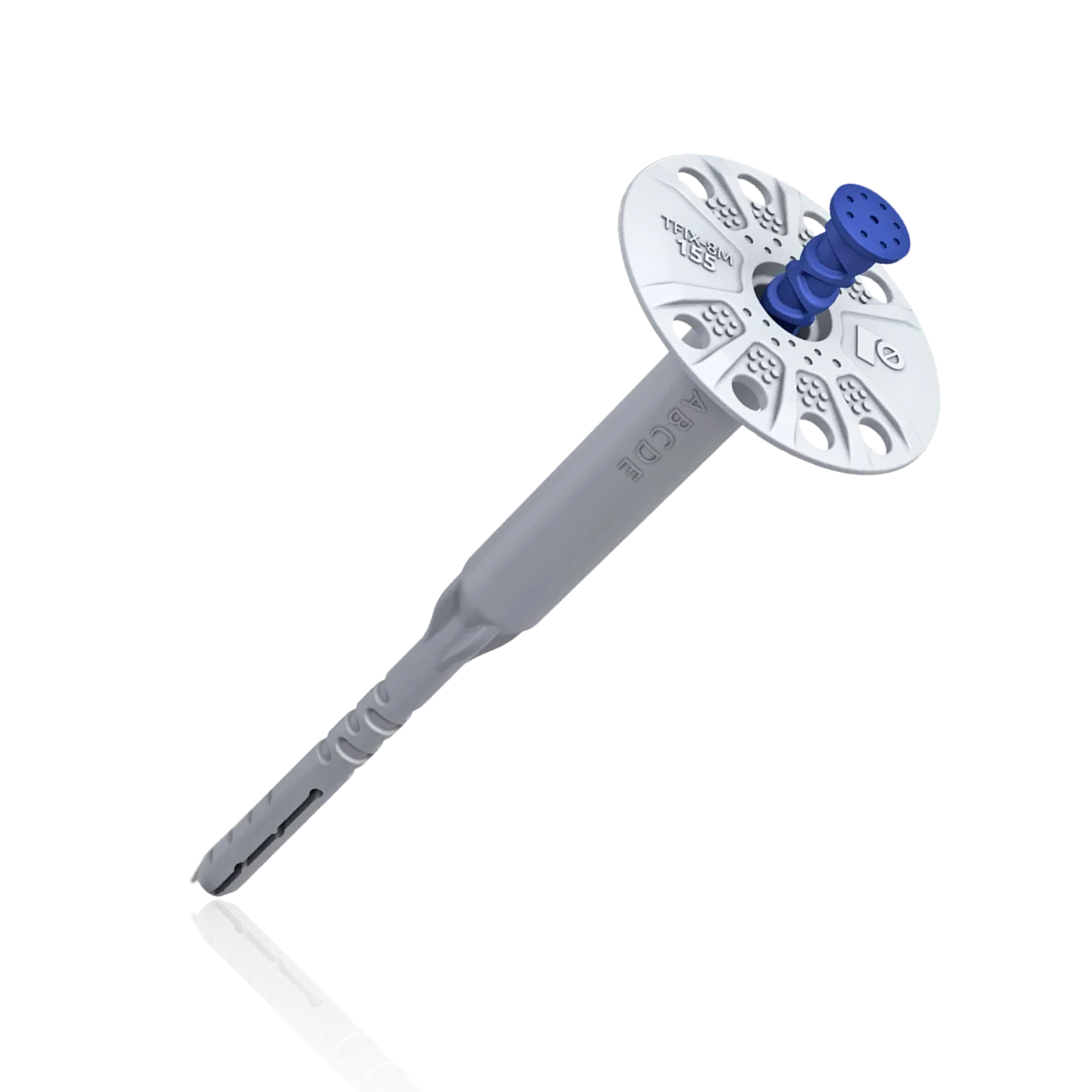

RAWLPLUG – Metal Hammer Fixing (RWL-R-TFIX-8M)


From £54.96 Excl. VAT

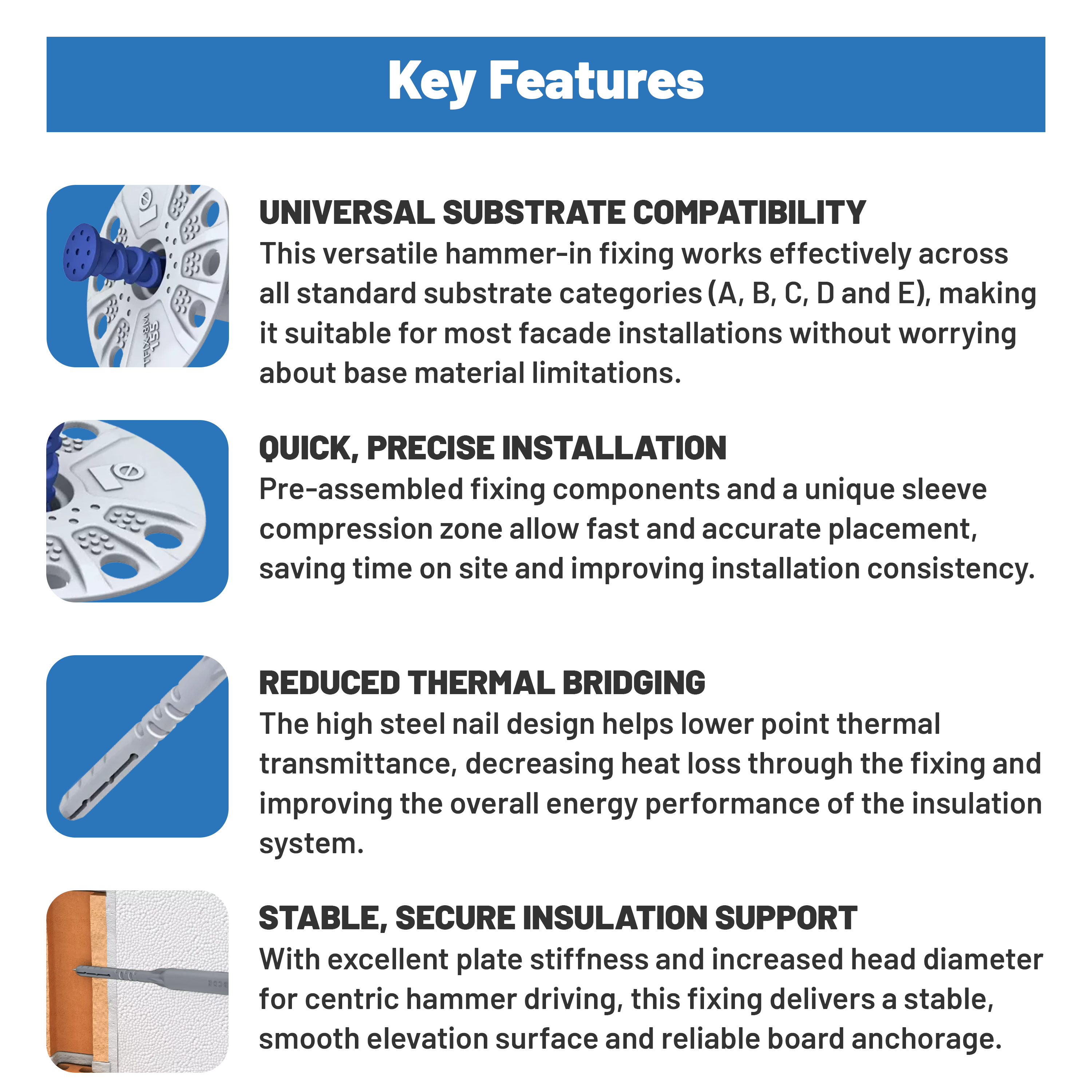

  • Increased head diameter
  • Quick and easy installation
  • Unique sleeve compression zone
  • Excellent plate stiffness (value 1.0 kN/mm)
  • Pre-assembled components

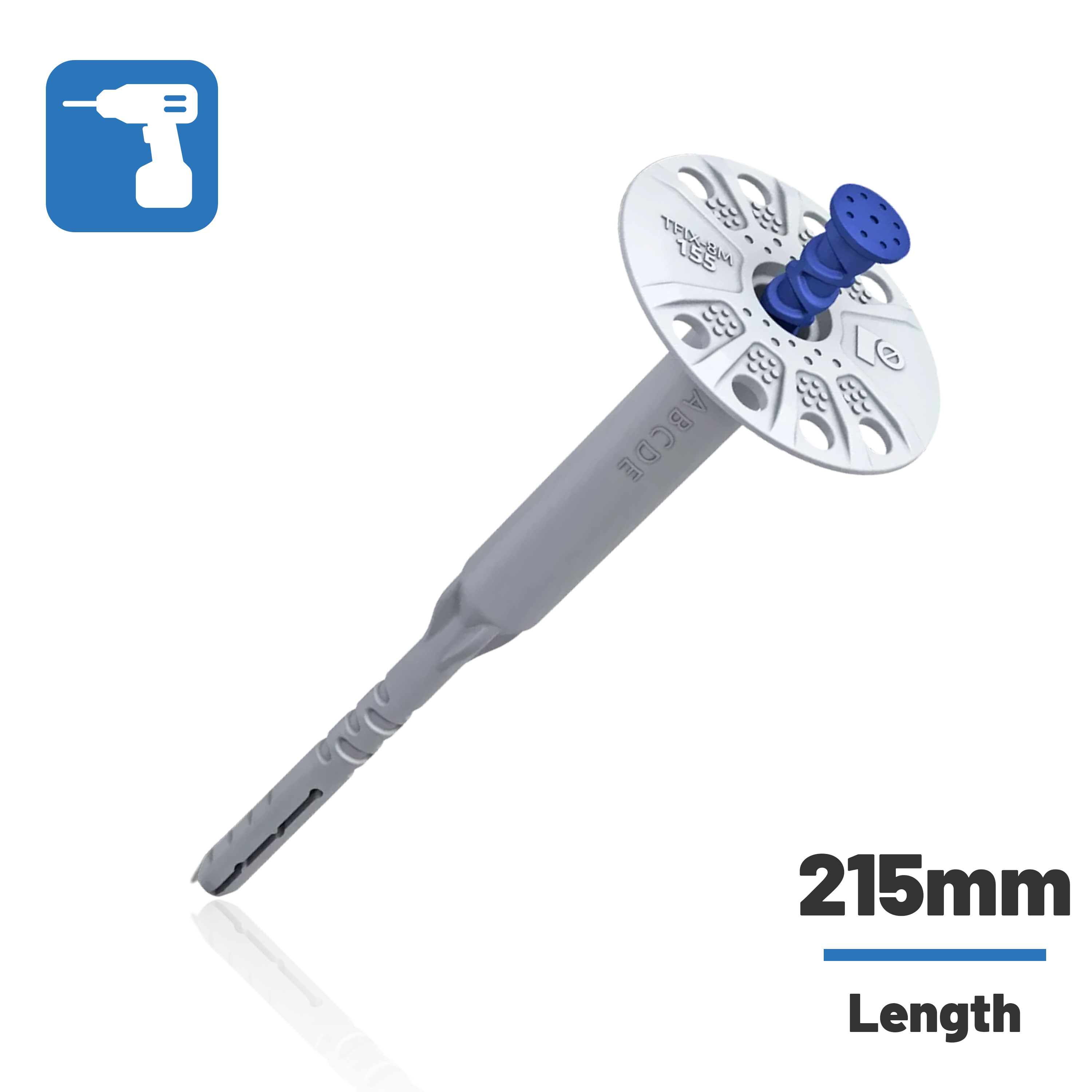

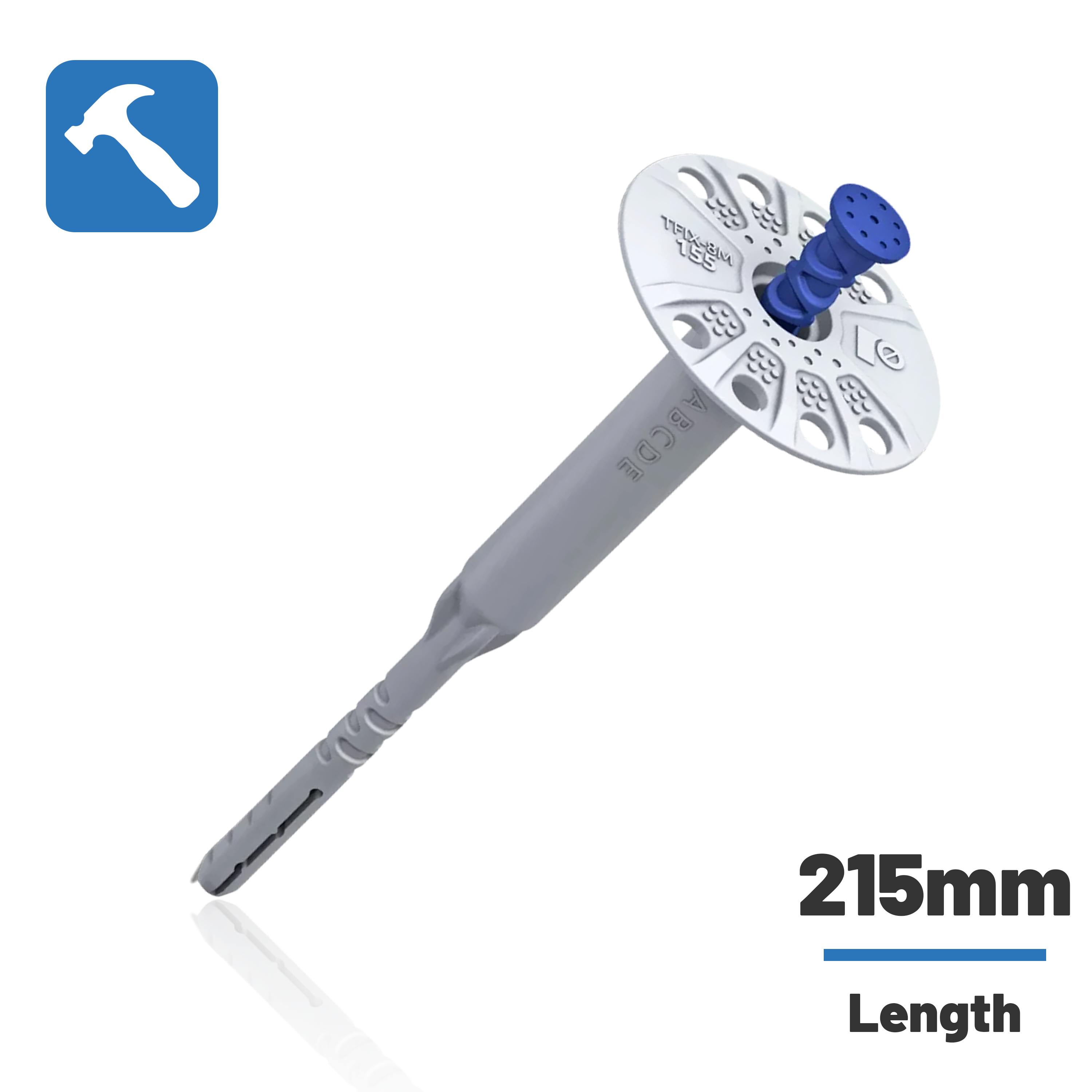

Lengths 135, 155, 175, 195mm are in-stock and ready to be purchased.

Lengths 215, 235, 255, 275 & 295mm are not in-stock and will be ordered by EWI Store upon request/purchase.


RAWLPLUG – Metal Hammer Fixing (RWL-R-TFIX-8M)

RAWLPLUG – R-TFIX-8M Metal Hammer Fixing is a versatile hammer-in facade fixing offering quick, easy and precise installation in all substrates (categories A, B, C, D and E) thanks to its unique sleeve compression zone. The fixing has an increased head diameter, enabling centric hammer driving and improved installation comfort. The additional steel nail offers a reduced point thermal transmittance, decreasing facade heat losses. The fixing’s plate stiffness (value 1.0 kN/mm) is of excellent quality, ensuring a smooth elevation surface and stable insulation system. All the components are pre-assembled, saving time and labour.

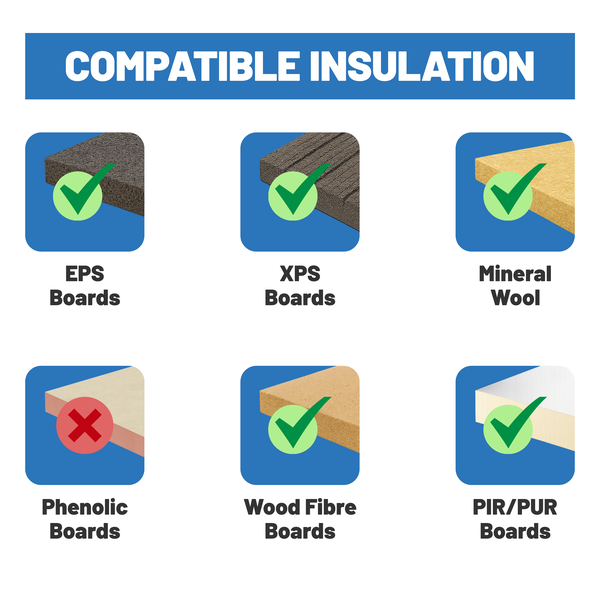

The R-TFIX-8M Facade fixing with metal nail is approved for application on:

  • External Thermal Insulation Composite Systems (ETICS)
  • Polystyrene (EPS) boards
  • Mineral wool (MW) boards
  • Polyurethane (PU) boards
  • Cork boards
  • Light wood wool building boards

Intended Uses

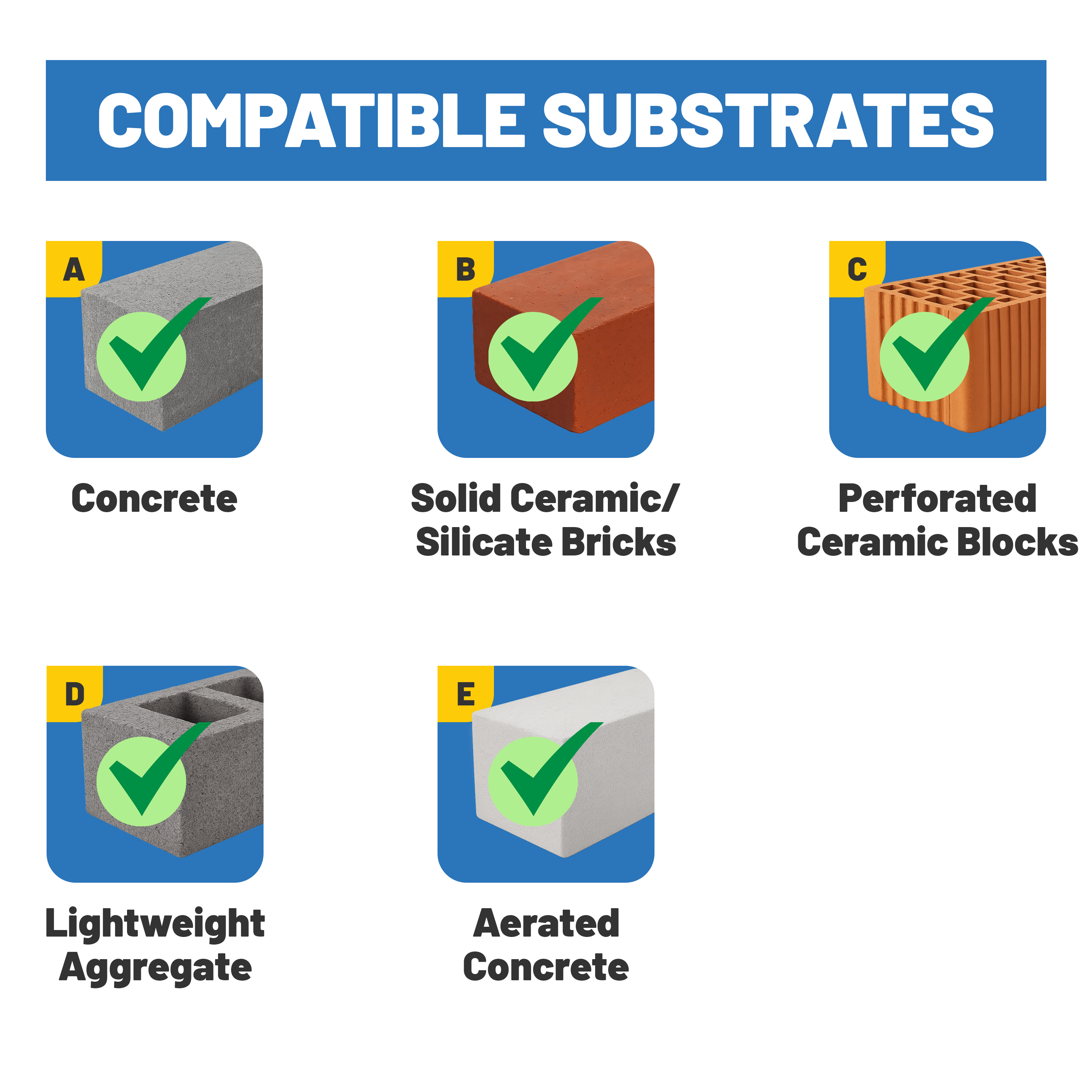

R-TFIX-8M Facade fixing with metal nail is approved for use in all substrate categories (see below. With its unique sleeve compression zone and high steel nail over-mould, it offers reduced point thermal transmittance which decreases facade heat loss. The categories include:

  • Concrete C12/15-C50/60 (Category A)
  • External wall panel of concrete C16/20 – C50/60 (Category A)
  • Solid Brick (Category B)
  • Solid Sand-lime Brick (Category B)
  • Hollow Sand-lime Brick (Category C)
  • Vertically perforated clay block (Category C)
  • Reinforced components of lightweight aggregate concrete (Category D)
  • Aerated Concrete Block (Category D)
  • Hollow Lightweight Concrete

, , , , , , , , , ,
