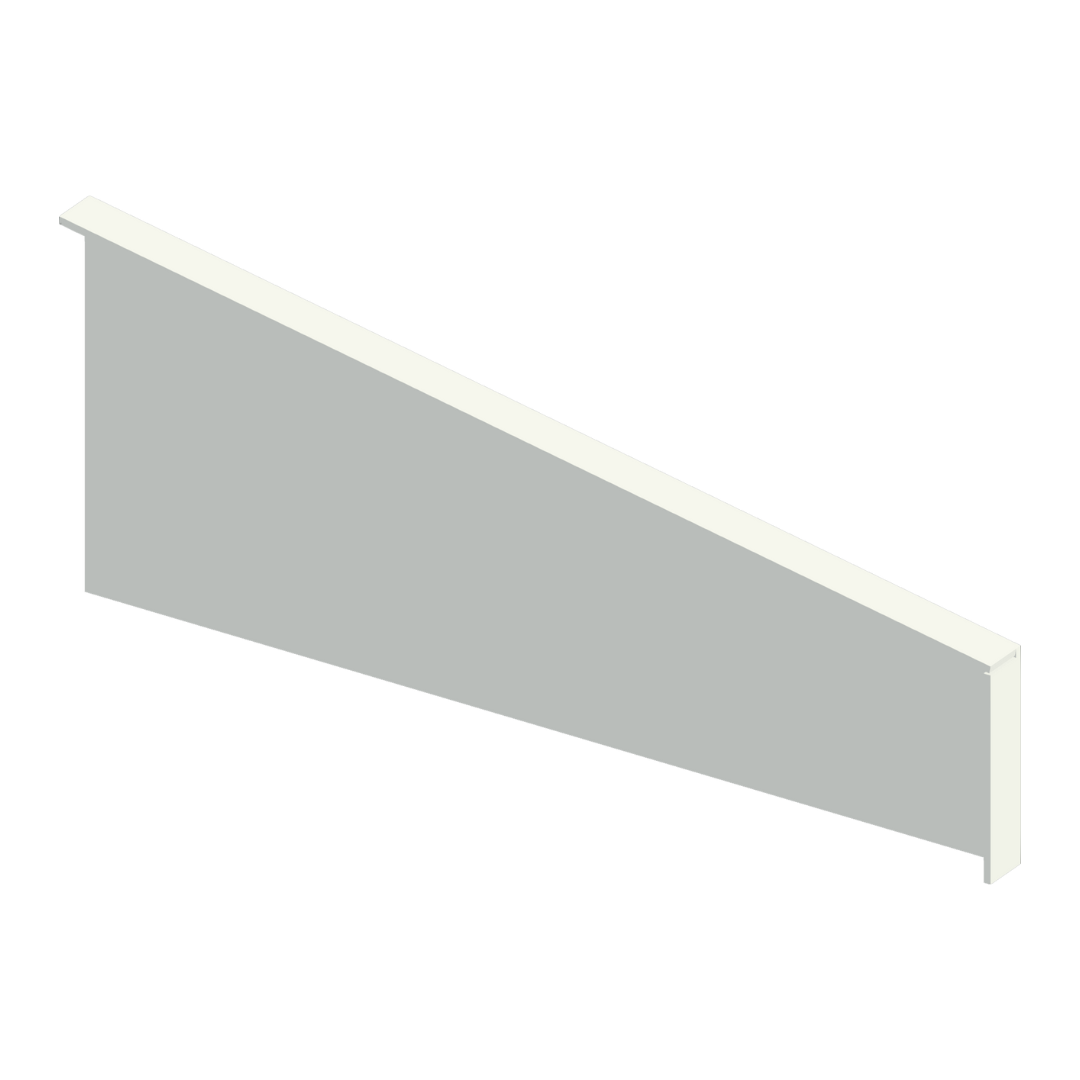

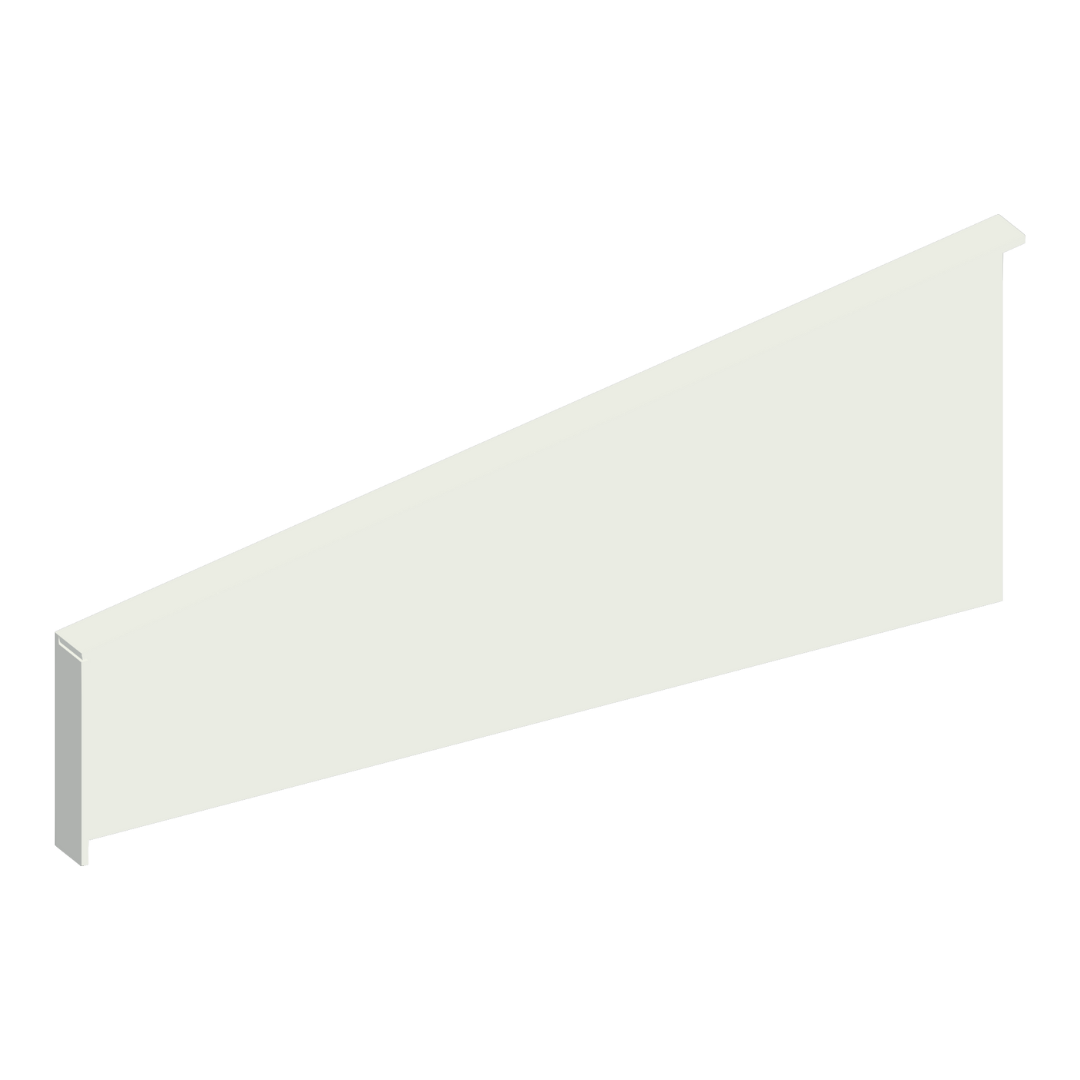

Roofline Closure System - End Caps

End Caps are vital components of the Roofline Closure Systems, effectively sealing the ends of the system. Aside from the aesthetic finish, End Caps are crucial in providing protection and weatherproofing for the EWI system. A sealed Roofline Closure System protects the EWI system from water ingress, which could lead to degradation and spalling.

As per the new RCS regulations, each piece must overlap the insulating system by at least 40mm (normal exposure) or at least 50mm in severe weather zones. For certain projects requiring a 50mm overlap, the pieces can be made upon request, with an additional minimum lead time. Typically, this is expected to be at least one week.

This RCS complies with PAS2035 standards and can, therefore, be used in ECO4, SHDF, HUG, etc installations. Please seek out compliance training with the system designer (EWI Pro Insulation Systems) prior to installing the RCS.

All RCS profiles are fabricated with a 10-degree pitch to facilitate water runoff.
