What is EPS insulation made from?

EPS insulation is made from expanded polystyrene beads that are fused together to form rigid boards. This composition gives EPS its strength, durability and excellent thermal performance, making it ideal for use in residential, commercial and industrial insulation projects.

Where can EPS insulation be used?

EPS insulation is suitable for both external and internal wall insulation. It can be applied to masonry, timber and system-built properties, as well as used beneath renders or within cavity wall insulation systems. Its versatility makes it a popular choice for new-build and retrofit projects alike.

How is EPS insulation installed?

EPS boards are typically installed using a dual fixing method, adhesive and mechanical fixings, to ensure a secure hold. For best results, we recommend using EWI-220 EPS Basecoat Adhesive, a specially formulated product designed to bond EPS insulation boards securely to masonry and other substrates. Once the boards are fixed, they should be covered with a basecoat and reinforcing fibreglass mesh. The surface should be rasped or sanded before applying the basecoat to create a better key for adhesion. EPS can be finished with EWI-075 Silicone Render or EWI-040 Acrylic Render, both of which complement its non-breathable nature and provide a durable decorative finish.

Can EPS insulation be used internally?

Yes, EPS can also be used for internal wall insulation. However, external wall insulation generally achieves better results by preventing thermal bridging and reducing the risk of internal condensation.

Why is EPS insulation cost-effective?

EPS insulation offers exceptional performance at a lower price point compared to many other materials. Its lightweight structure means it requires less adhesive strength and uses plastic fixings rather than metal, reducing both material and labour costs without compromising quality.

What is the difference between EPS and XPS insulation?

EPS (Expanded Polystyrene) and XPS (Extruded Polystyrene) are made from the same base resin but produced using different processes. EPS is lighter, more affordable and ideal for wall insulation. XPS is denser and stronger, making it better suited for below-ground or flooring applications. Both materials deliver excellent thermal performance, but EPS is often preferred for external wall insulation systems due to its cost-effectiveness and ease of installation.

Is EPS insulation waterproof?

Yes, EPS insulation is highly water-resistant. It helps protect your property against damp and mildew, maintaining a healthy wall structure. For added protection, you can pair EPS insulation with a waterproof render such as Nano Drex Silicone Render or Premium Bio Silicone Render to enhance weather resistance.

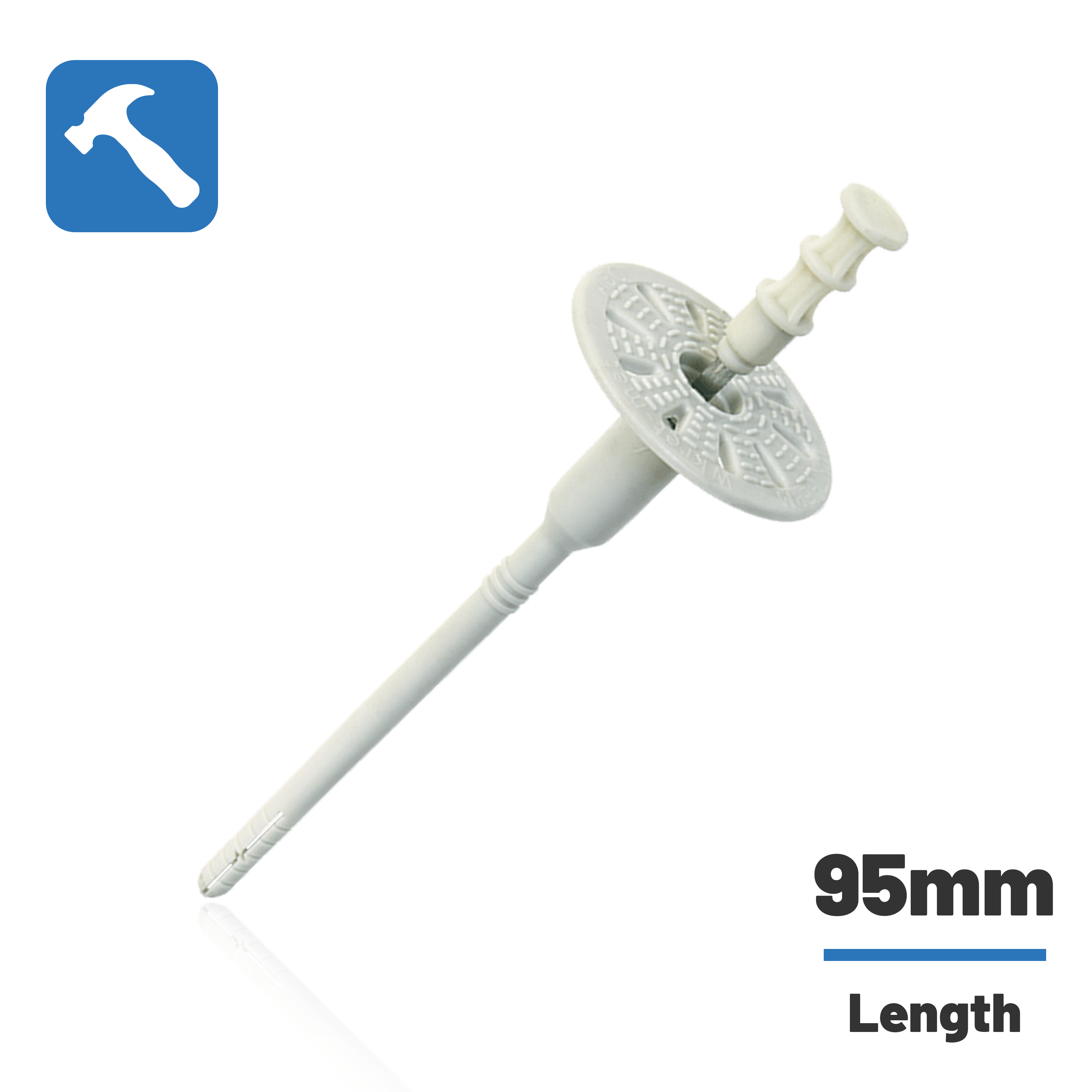

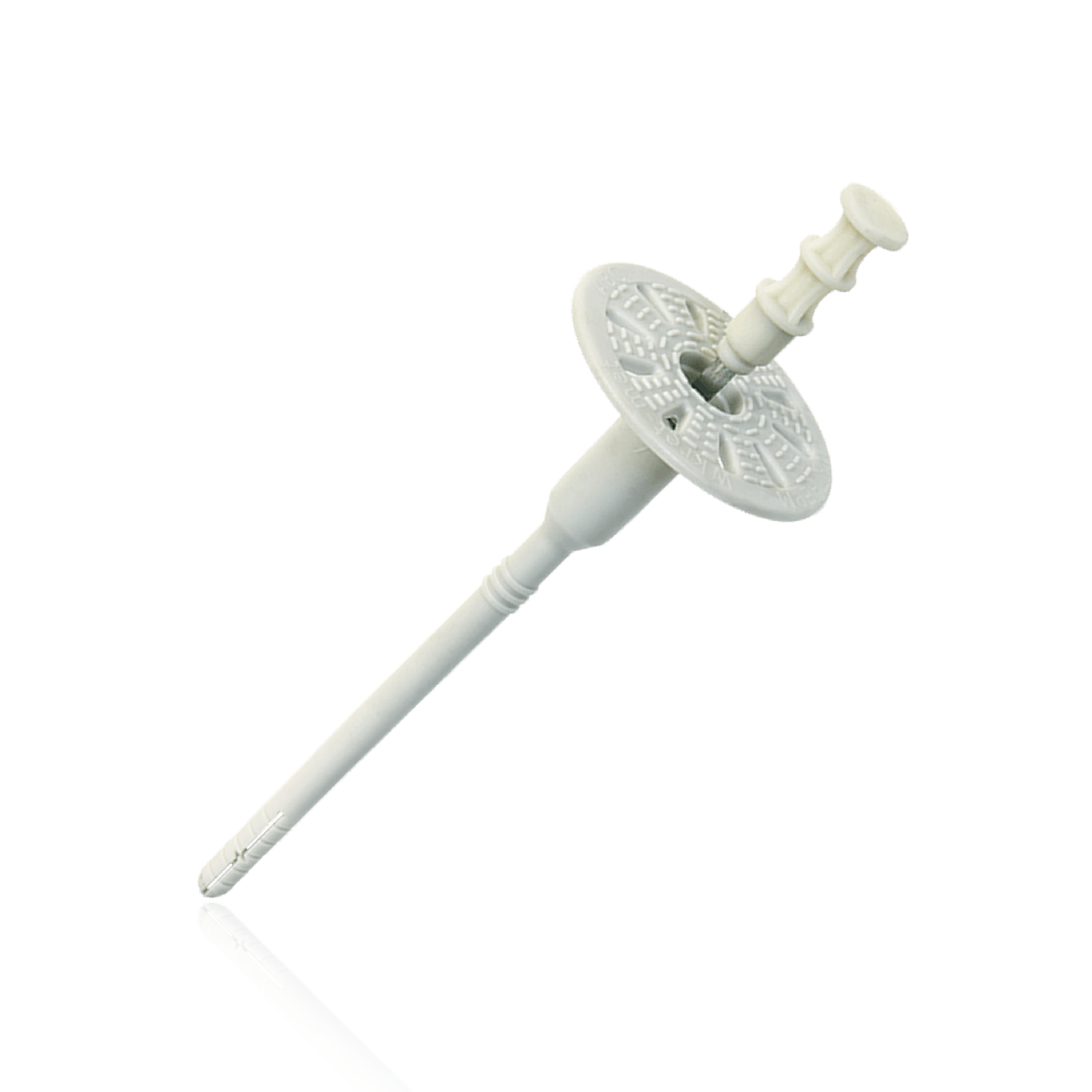

8mm Hammer Fixing with Metal Pin & Short Expansion Zone - 95mm

Brand: EWI Pro

SKU: WKR-WKTHERM08095

Pack of 200 Fixings

Length

£55.13 Incl. VAT

£55.13 Incl. VAT (regular price)

Please note: This product has a slightly longer lead time. Our team wiil notify you with an estimated delivery date.

Quantity:

The 8mm Hammer Fixing with Metal Pin & Short Expansion Zone is a hammer-driven fixing designed for securing external wall insulation (EWI) systems. Featuring a durable polyethylene body and a steel pin with plastic-sealed head, it provides strong anchorage while reducing point thermal conductivity. The short expansion zone enables efficient fixing into solid substrates, with a secure flush finish thanks to its innovative telescopic sleeve design. Suitable for EPS and Mineral Wool insulation, this fixing offers fast installation and long-term stability in ETICS applications.

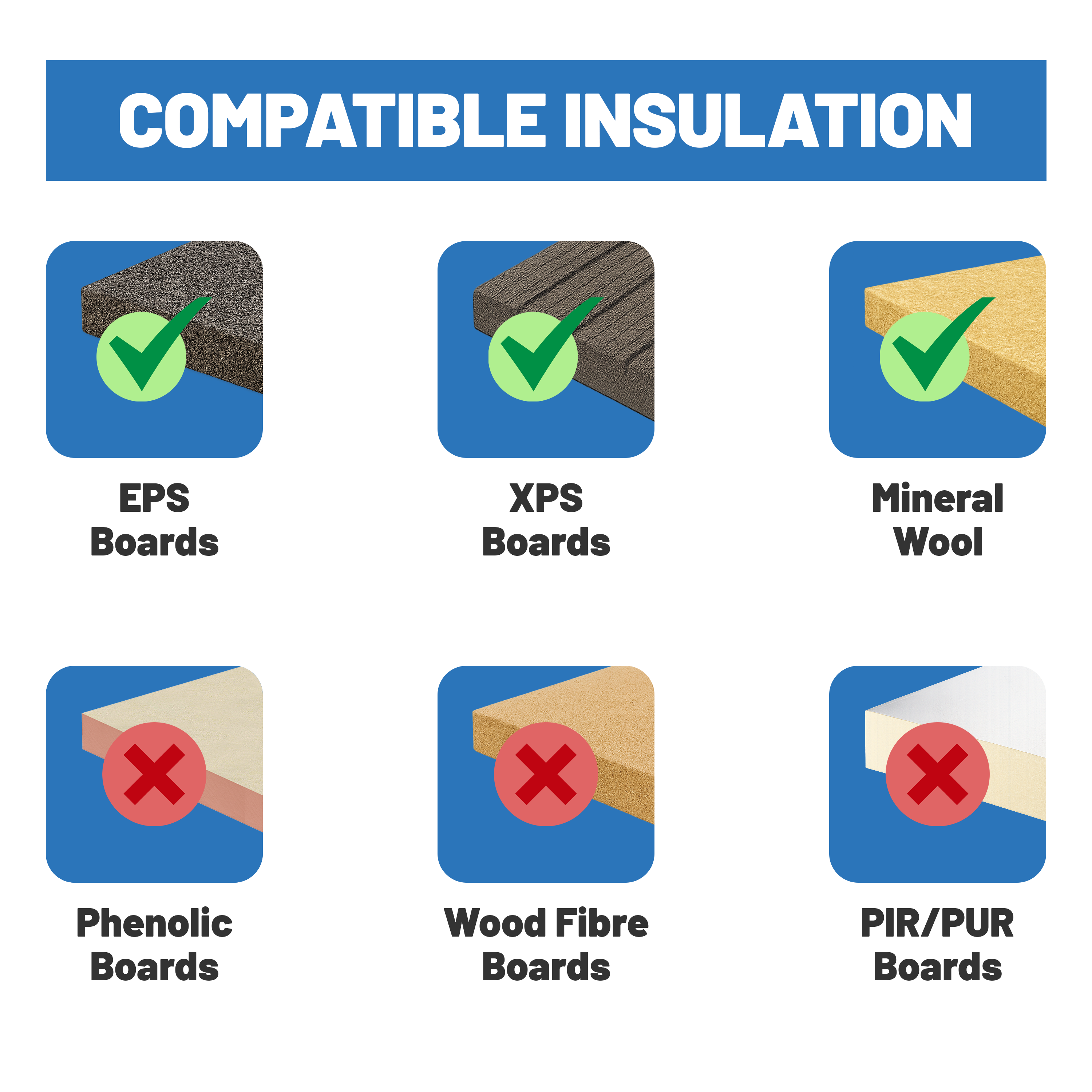

Suitable Insulation Boards

Insulation Type	Compatibility
EPS (Expanded Polystyrene)	Compatible
XPS (Extruded Polystyrene)	Compatible
Mineral Wool	Compatible (with support washers)
PIR / Phenolic (e.g., Kingspan)	Not compatible
Wood Fibre	Not compatible

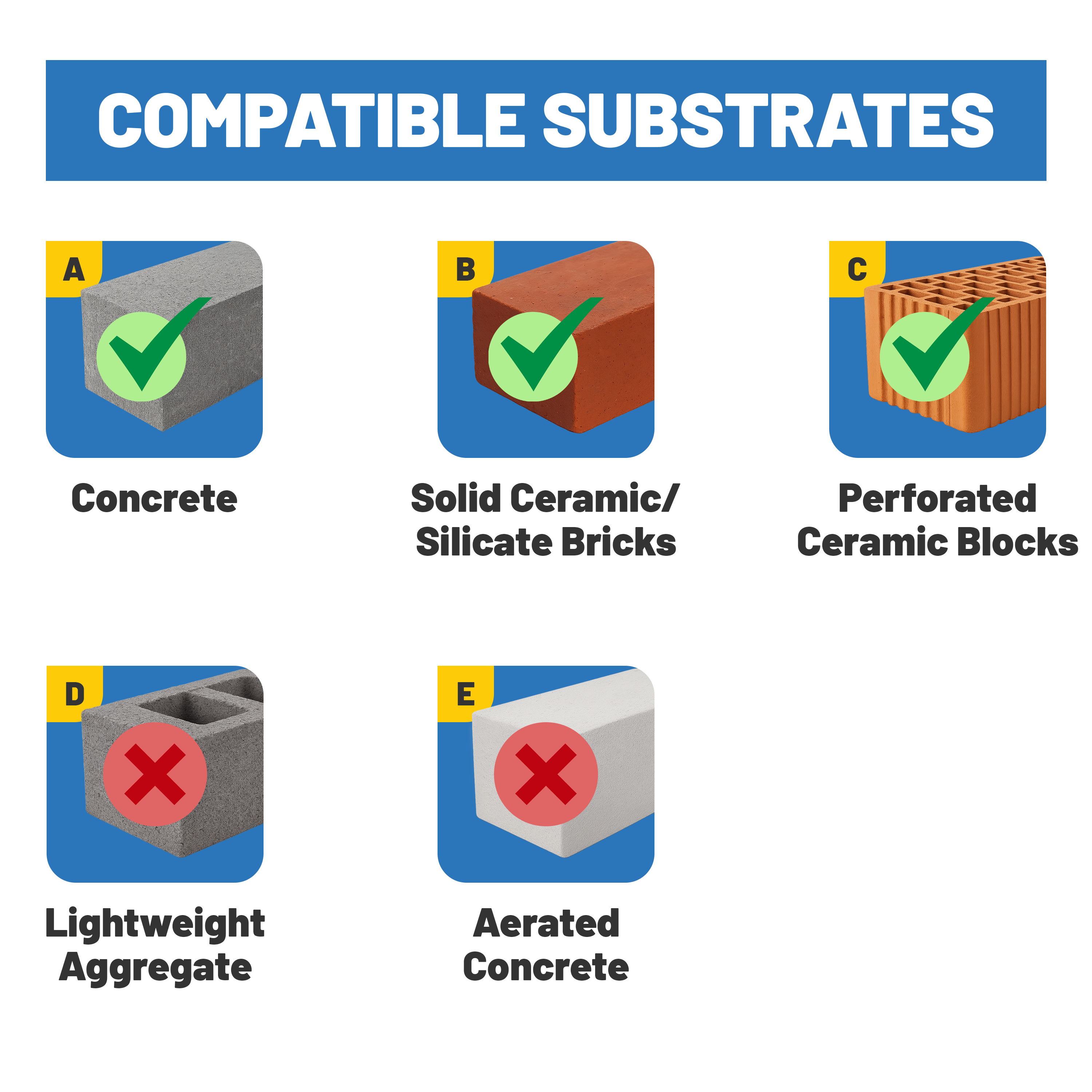

Compatible Substrates (ETA Categories A–C)

ETA Category	Substrate	Compatibility
A	Concrete	Compatible
B	Solid brick / silicate brick	Compatible
C	Vertically perforated ceramic brick / hollow block	Compatible

If the substrate condition is uncertain, carry out a pull-out test to confirm suitability.

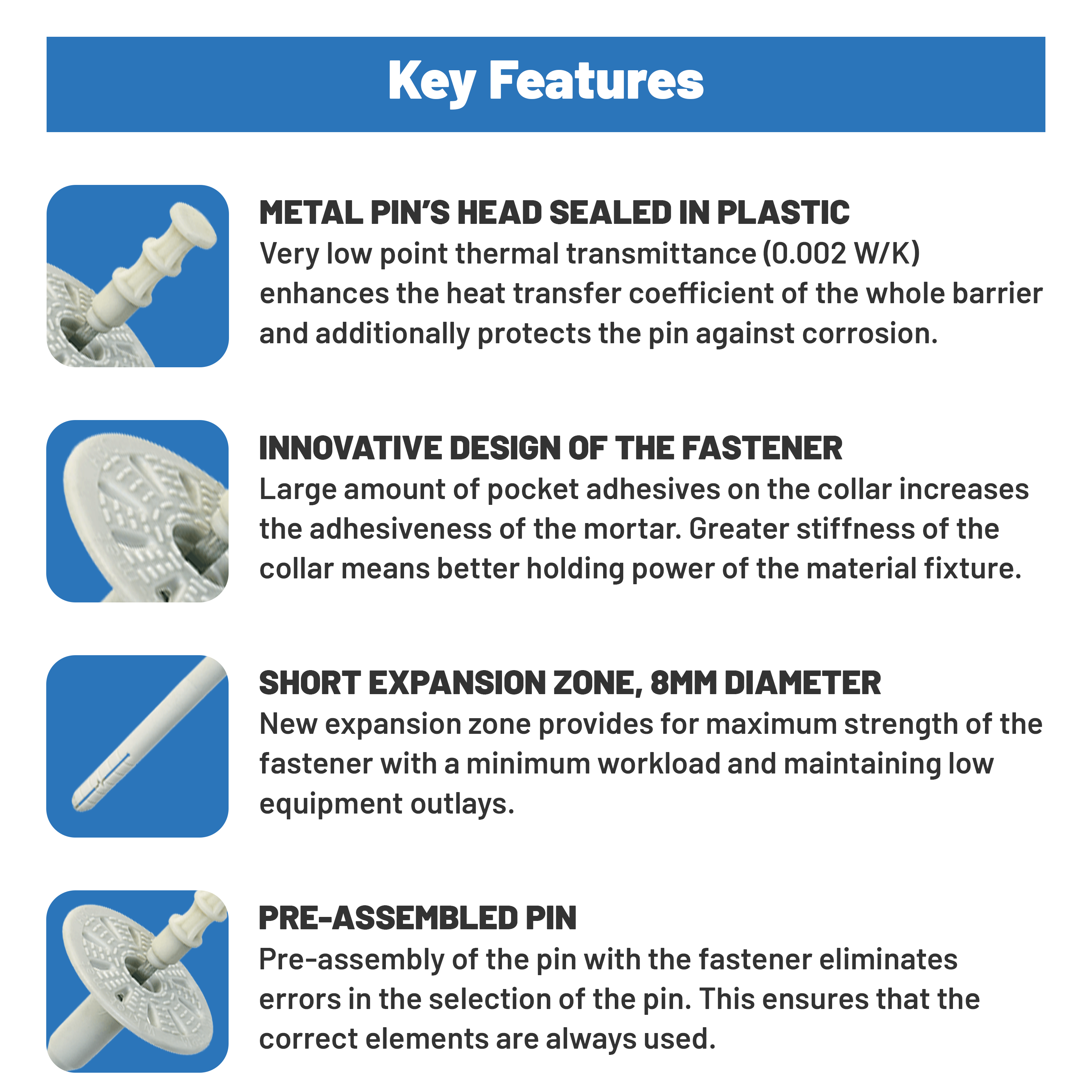

Key Features

Steel pin with plastic-sealed head reduces thermal transfer and resists corrosion.
Short expansion zone provides secure anchorage in dense substrates.
Telescopic sleeve sits flush with insulation for reduced thermal bridging.
Fast hammer-in installation — ideal for larger façade areas.
Compatible with EPS & Mineral Wool systems (support washers required for MW).
ETA-13/0107 approved for EWI systems.

Sizes & Box Quantities

Size (Ø8mm)	Box Quantity
95 mm	200 per box
115 mm	200 per box
135 mm	200 per box
155 mm	200 per box
175 mm	200 per box
195 mm	200 per box
215 mm	100 per box
235 mm	100 per box

Select length based on insulation thickness + adhesive layer + required embedment depth.

Application

Preparation

Mark out the fixing grid according to design and wind-load requirements.
Check for services (cables and pipes) before drilling.
Use rotary-only mode for hollow blocks; hammer mode for dense substrates.

Installation steps

Apply adhesive to insulation boards and place boards tightly with staggered joints.
Drill perpendicular through the insulation into the substrate.
Insert the fixing body and hammer the metal pin to seat it flush.
Do not over-drive or deform the insulation surface.
Install fixings per the specified pattern, adding extra around corners and openings.
Proceed with basecoat and reinforcement mesh as per system design.

Fixing pattern & density

Typical density: 4–6 fixings per m², increasing in edge and high-load areas.
Keep consistent spacing and avoid placing fixings too close to board edges unless specified.

Quality checks

Perform pull-out tests if substrate condition varies.
Replace any fixing that spins or fails to grip and re-drill as needed.

Frequently Asked Questions

It is for securely installing EPS and Mineral Wool boards onto solid wall substrates as part of an ETICS system.

It suits concrete, solid clay brick, calcium silicate brick and hollow brick.

Hammer-in installation is faster, needs no screwdriving and cuts tool wear on large projects.

The 8 mm expansion zone gives strong anchorage with less drilling effort and quicker progress on site.

The plastic-sealed steel pin limits heat transfer through the fixing point for better thermal performance.

Yes. It is compatible with EPS and Mineral Wool in ETICS applications.

Yes. Adhesive pockets on the collar improve bonding to the mortar layer and reduce movement.
