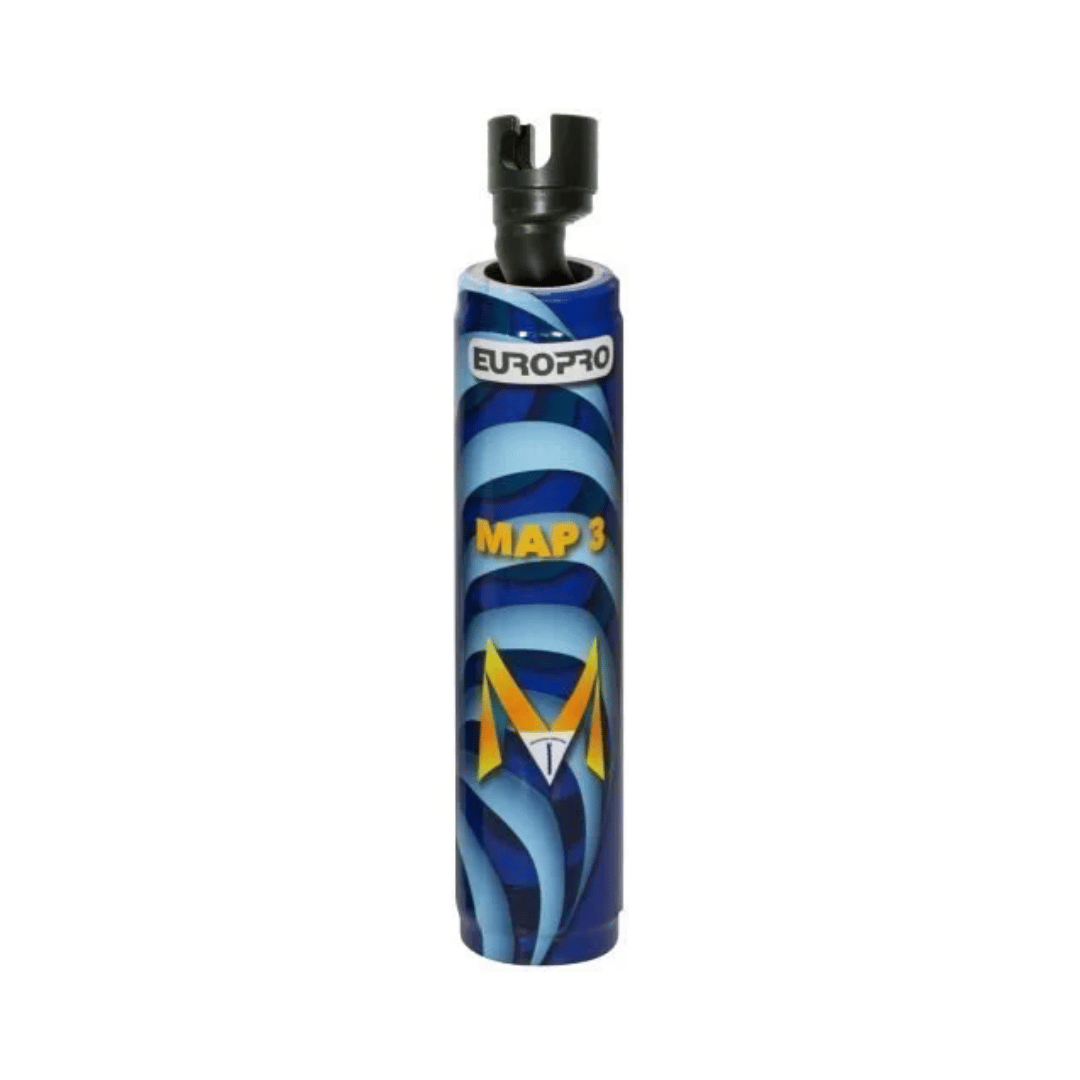

Euromair - DropPro 8P Rotor & Stator (MAP3)

The Euromair DropPro 8P Rotor & Stator (MAP3) is designed to fit the DropPro 8P. This rotor & stator set is great for pumping grouts and thin coat renders through the Euromair EuroPro 8P. The Map 3 Rotor & Stator set is ideal for spraying or pumping materials up to 2mm in aggregate size. This set can pump and spray products like thin coat renders, machine applicable plasters, and light weight renders. It can also handle products for pointing work. The Euromair DropPro 8P Rotor & Stator (MAP3) is a volumetric pump that creates a positive displacement effect that moves fluid through the system in a continuous flow. Volumetric pumps are characterised by their ability to maintain a constant flow rate, regardless of changes in pressure or viscosity. The rotor is the rotating part of the machine, which typically includes a shaft and a set of coils, magnets, or blades. On the other hand, the stator is the stationary part that surrounds the rotor. It contains electromagnetic or fluidic components that interact with the rotor to generate motion or flow.

Constructing the Rotor & Stator

You will need a vice, spanner and silicone spray.

1. Place the stator in a vice and ensure that it is level and secure.
2. Spray the rotor and the top end of the stator with silicone spray.
3. Begin twisting the rotor into the stator using your hands.
4. Insert a spanner into the drive of the rotor and turn it clockwise until the rotor is flush and in-line with the end of the stator.

Technical Data

Type	N13 S
RPM	400
Flow-rate	10 L/Min
Max Pressure	30 bar
Max Grain Size	2mm
SH = Shore	70
Length	210mm
